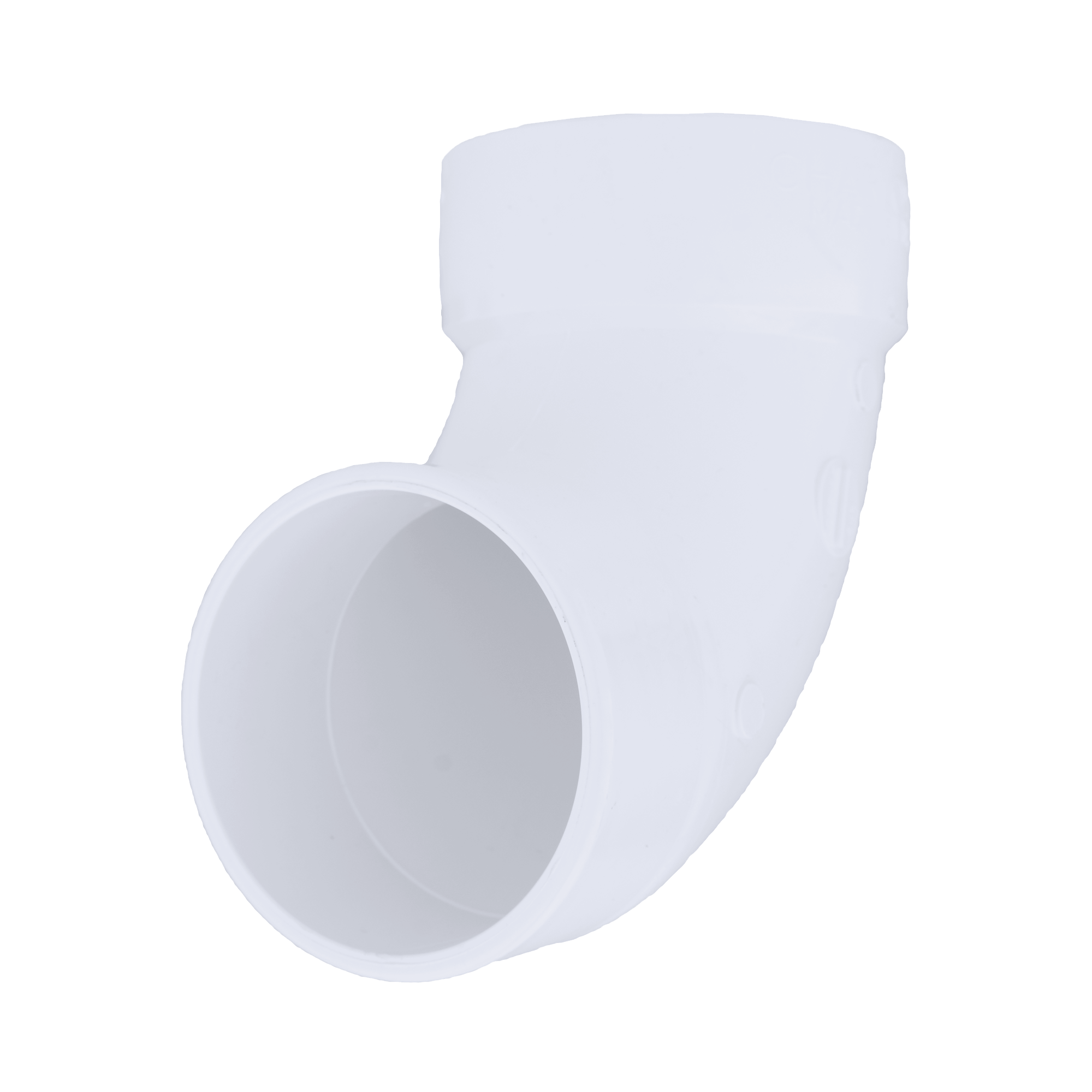

Charlotte Pipe PVC-302-4IN 4 Inch Pvc Dwv Street Elbow

Product Description

The CHARLOTTE PIPE PVC-302-4IN is a 4-inch PVC DWV 90-degree street elbow designed for drain, waste, and vent piping systems. This quarter-bend street fitting connects directly into a hub without a separate coupling, making it a common choice in gravity-fed waste elimination systems. PVC construction keeps the fitting lightweight and easy to handle on the job. It is suited for non-pressure applications where system temperatures will not exceed 140 degrees F. Licensed plumbers and pipefitters install this fitting in residential and light commercial DWV rough-in work.

This street elbow is used wherever a 90-degree direction change is needed in a drain, waste, or vent line. Typical installations include under-slab drain runs, in-wall vent stacks, and horizontal waste branches connecting to vertical stacks. The street end inserts directly into a fitting hub, eliminating one joint compared to a standard elbow-and-coupling combination. It is appropriate for gravity-flow systems only and is not rated for pressurized service. Manufactured in the USA, this fitting meets the quality standards expected in professional plumbing installations.

Key Features

• 90-degree street configuration eliminates the need for an additional coupling at the connection point
• Rated for non-pressure DWV service in drain, waste, and vent applications
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement joining, threading, flanging, and roll-grooved joining methods
• Lightweight PVC material requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fit for 4-inch PVC DWV piping systems used in gravity-fed residential and commercial drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and ensure the drain system is depressurized before cutting into existing lines. Solvent cement joining requires proper primer and cement rated for PVC DWV service; follow manufacturer cure times before restoring flow. Do not use this fitting in pressurized water supply lines or in systems where operating temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 4 inches
• Material: PVC
• Fitting Type: 90-Degree Street Elbow (Quarter Bend)
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Methods: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942033737

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-302-4IN
