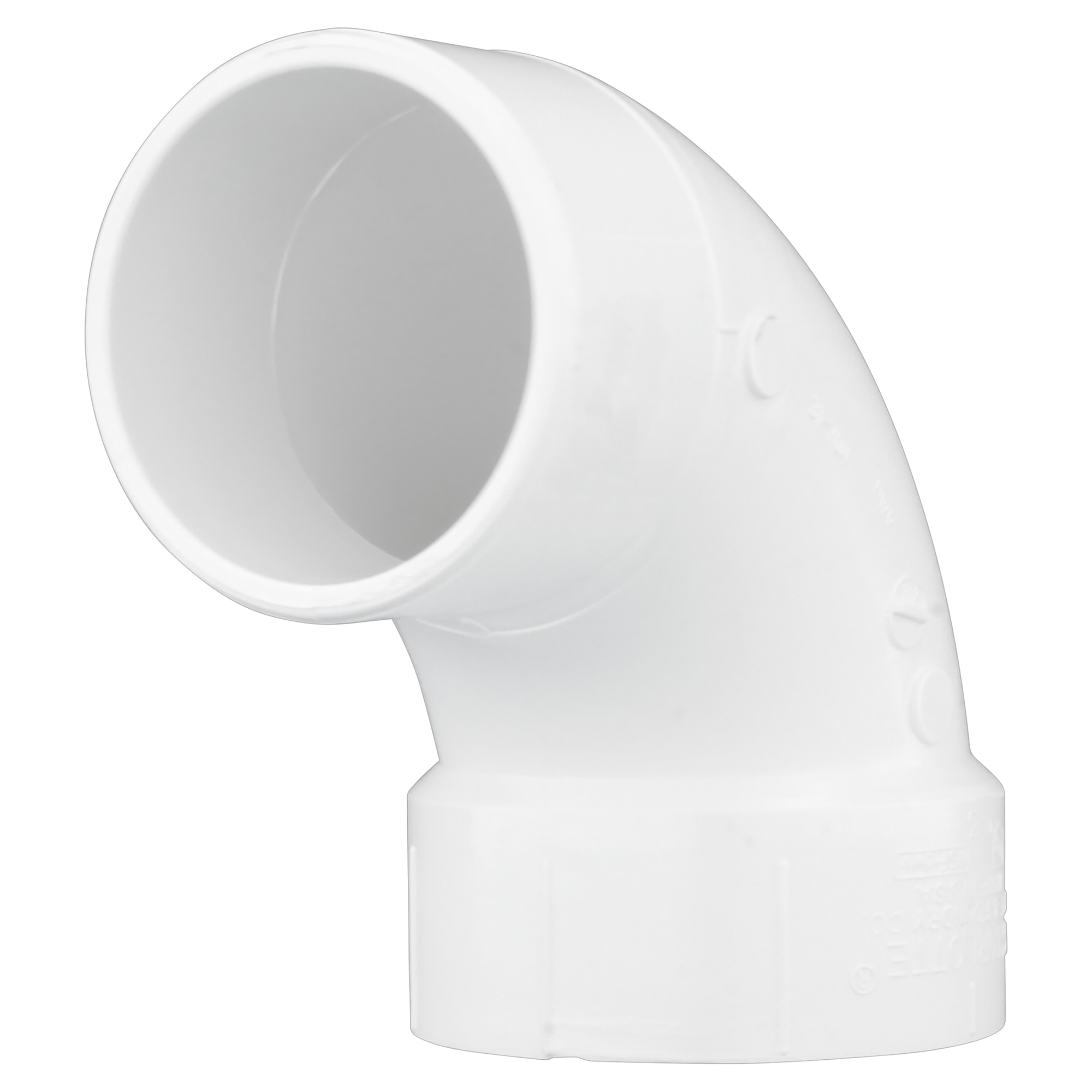

Charlotte Pipe PVC-302-3IN Pvc Dwv 90 Street Elbow 3 in

Product Description

The CHARLOTTE PIPE PVC-302-3IN is a 3-inch PVC DWV 90-degree street elbow designed for drain, waste, and vent applications in non-pressure, gravity-fed systems. This fitting accepts a spigot on one end and a socket on the other, allowing it to connect directly into another fitting socket without a coupling. It is rated for service where temperatures will not exceed 140 degrees F. Lightweight PVC construction makes handling and positioning straightforward, and the fitting joins using standard solvent cement — no specialty cutting tools required. Plumbers install this type of fitting during rough-in work on residential and light commercial DWV systems.

This street elbow is used in gravity-fed drain, waste, and vent piping systems in residential and commercial construction. It is suited for horizontal drain lines, vertical stack transitions, and vent routing where a 90-degree direction change is needed. The street configuration eliminates the need for an additional short section of pipe between back-to-back fittings, saving space in tight chases and wall cavities. All Charlotte Pipe fittings are manufactured in the USA.

Key Features

• 90-degree street elbow configuration with spigot inlet and socket outlet for direct fitting-to-fitting connection
• 3-inch diameter matches standard DWV pipe sizing for residential and commercial drain lines
• Compatible with solvent cement joining — no threading or specialty tools required for installation
• Rated for non-pressure gravity-fed systems up to 140 degrees F
• Lightweight PVC construction simplifies handling during overhead and wall rough-in work
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-construction fitting for 3-inch PVC DWV piping systems operating under gravity-flow, non-pressure conditions.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the drain line is clear before cutting into an existing system. Clean and dry all mating surfaces, apply the appropriate PVC primer and solvent cement per manufacturer instructions, and allow full cure time before restoring flow. Do not use this fitting in pressurized water supply lines or in systems where temperatures regularly exceed 140 degrees F.

Technical Specifications

• Pipe Size: 3 inches
• Fitting Type: 90-Degree Street Elbow (1/4 Bend Street)
• Material: PVC
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent Cement
• UPC: 611942033720
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-302-3IN
