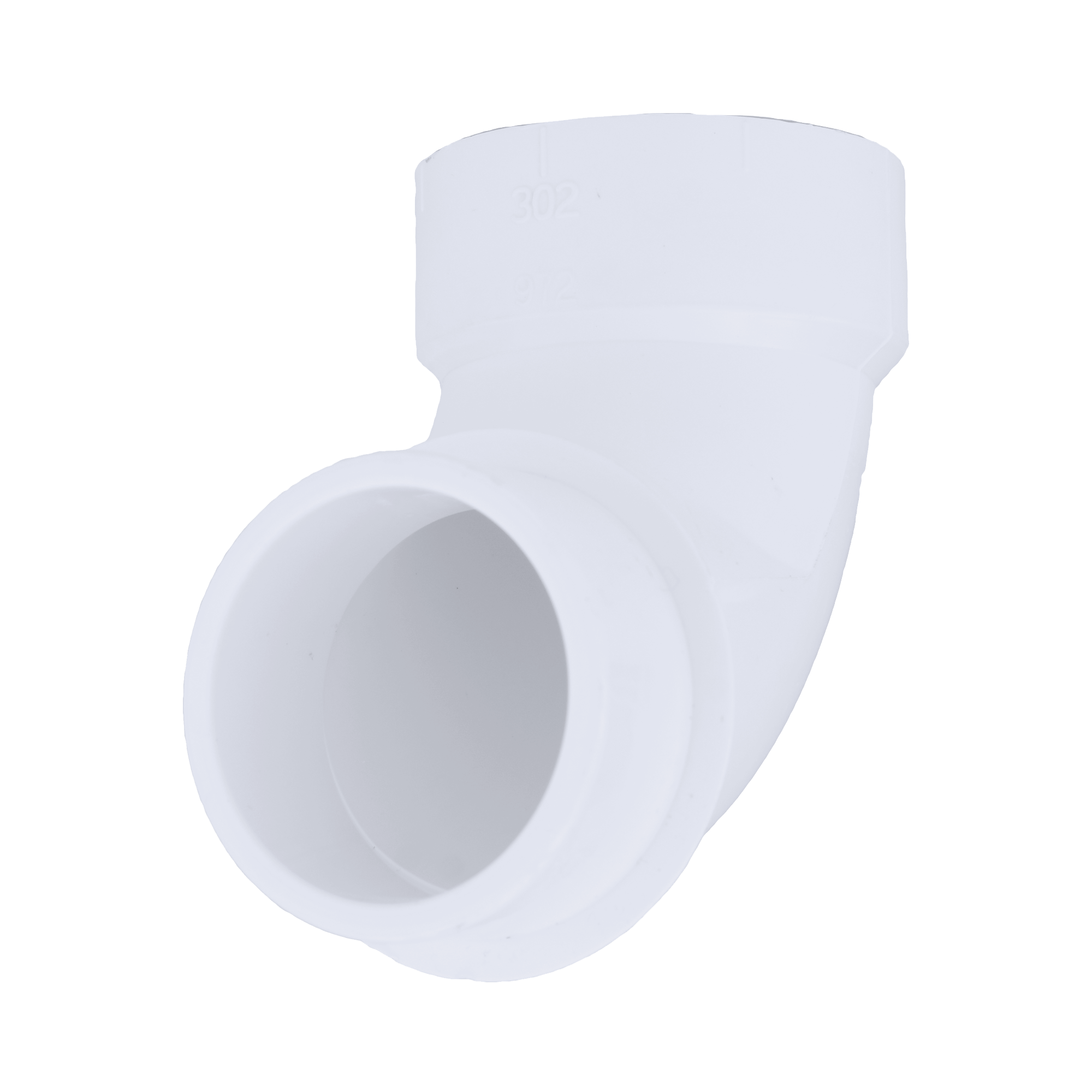

Charlotte Pipe PVC-302-1-1/2 Pvc Dwv 1.5 in Street Elbow

Product Description

The CHARLOTTE PIPE PVC-302-1-1/2 is a 1-1/2 inch PVC DWV quarter-bend 90-degree street elbow designed for drain, waste, and vent piping systems. This fitting is used in gravity-fed, non-pressure waste elimination systems and is rated for temperatures up to 140 degrees F. PVC construction keeps the fitting lightweight and straightforward to handle on the job. Licensed plumbers and pipefitters install this type of fitting using solvent cement, with no specialized cutting tools required. The street configuration allows one end to insert directly into a hub, reducing the need for an additional coupling in tight spaces.

This fitting is suited for residential and light commercial DWV applications, including drain lines, waste stacks, and vent piping roughed in during new construction or remodel work. It is appropriate for use where a 90-degree directional change is needed in a non-pressure drainage system. The 1-1/2 inch size is common in lavatory, kitchen sink, and similar fixture drain branch lines. Manufactured in the USA, this fitting meets standard requirements for PVC DWV fittings used in typical plumbing installations.

Key Features

• Quarter-bend 90-degree street elbow allows direct hub insertion without an extra coupling
• PVC material is lightweight and does not require special cutting tools
• Compatible with solvent cementing, threading, flanging, and roll-grooved joining methods
• Rated for non-pressure gravity-fed DWV systems up to 140 degrees F
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch PVC DWV piping systems in residential and light commercial non-pressure drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off water supply and verify the system is fully drained before cutting into existing drain lines. Clean and dry all mating surfaces before applying PVC solvent cement, and allow full cure time before restoring flow. Do not use this fitting in pressure piping systems or in applications where temperatures will exceed 140 degrees F.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Material: PVC
• System Type: DWV (Drain, Waste, Vent)
• Fitting Type: Quarter Bend 90 Degree Street Elbow
• Max Temperature: 140 degrees F
• Joining Method: Solvent Cement, Threading, Flanging, Roll-Grooved
• Pressure Rating: Non-Pressure Systems Only
• Country of Origin: USA
• UPC: 611942033706

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-302-1-1/2
