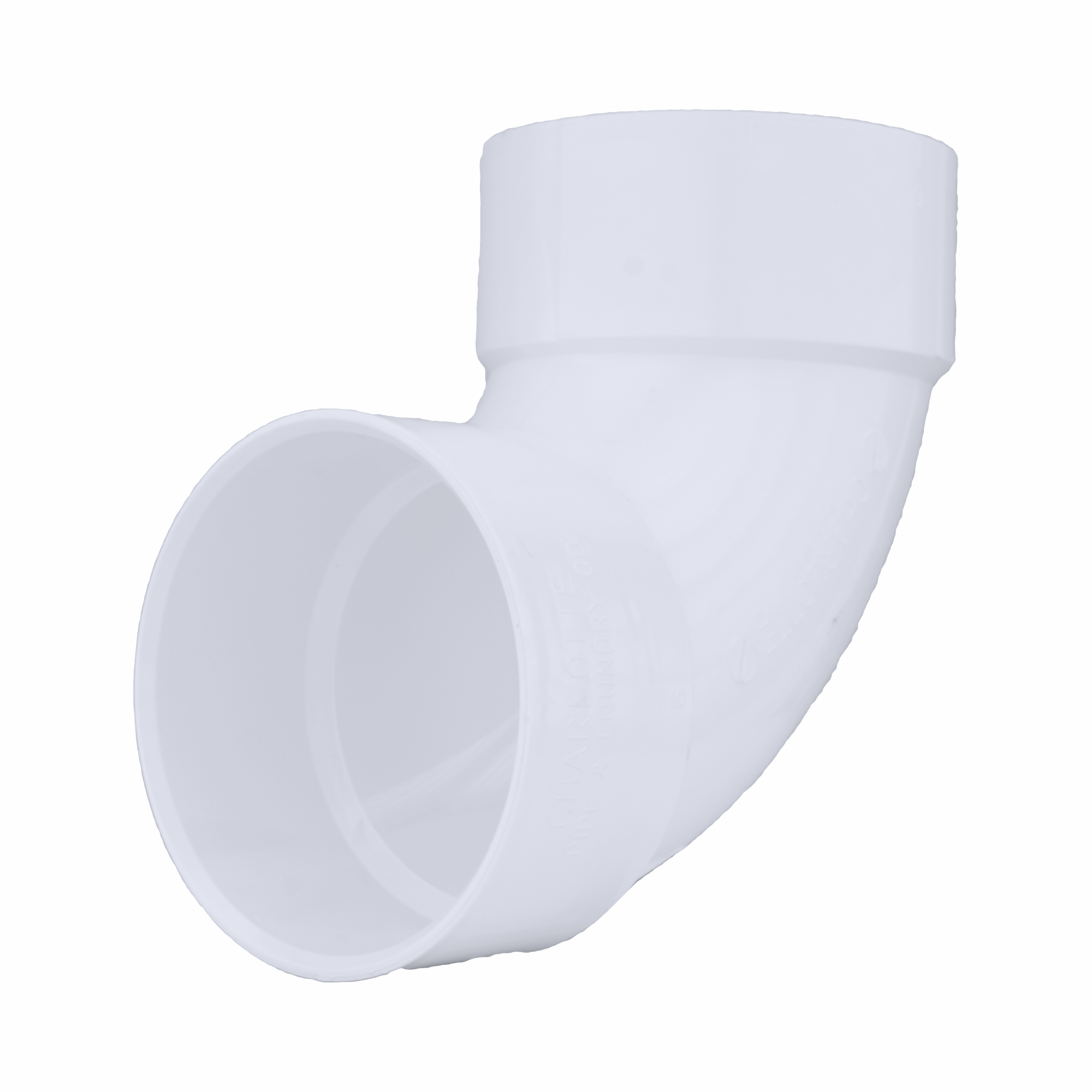

Charlotte Pipe PVC-300-6IN 6 in Pvc Dwv 90 Elbow Hub X Hub

Product Description

The CHARLOTTE PIPE PVC-300-6IN is a 6-inch PVC DWV quarter-bend elbow fitting with hub x hub connections. It is designed for drain, waste, and vent applications in gravity-fed, non-pressure piping systems. This 90-degree elbow redirects flow in residential and commercial DWV systems and is rated for continuous service in environments where temperatures will not exceed 140 degrees F. PVC construction keeps the fitting lightweight and straightforward to handle on the job. Licensed plumbers and pipefitters install this type of fitting using solvent cement, the standard joining method for PVC DWV work.

This fitting is suited for residential and light commercial drain, waste, and vent installations where a full 90-degree change of direction is required. Typical applications include branch connections at toilet flanges, floor drains, and main stack offsets. It is compatible with gravity-flow DWV piping systems and is not rated for pressure service. All Charlotte Pipe products are manufactured in the USA, making domestic sourcing straightforward for projects with Buy American requirements.

Key Features

• 6-inch hub x hub connections accept standard PVC DWV pipe ends for solvent-cement joining
• 90-degree quarter-bend geometry for full right-angle direction changes in DWV runs
• Rated for non-pressure, gravity-fed drain, waste, and vent service only
• Maximum service temperature of 140 degrees F
• Lightweight PVC construction reduces handling fatigue on large-diameter installations
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 6-inch PVC DWV piping systems operating under gravity-flow, non-pressure conditions.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local amendments. Shut off water supply and ensure the line is depressurized and drained before cutting into an existing system. Hub connections require proper pipe preparation including cutting square, deburring, and applying primer and solvent cement per the cement manufacturer's instructions. Do not use this fitting in pressurized or high-temperature service applications.

Technical Specifications

• Pipe Size: 6 inches
• Connection Type: Hub x Hub
• Bend Angle: 90 degrees
• Material: PVC
• Application: DWV (Drain, Waste, Vent) non-pressure systems
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942033591

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-300-6IN
