Charlotte Pipe PVC-300-3IN Pvc Dwv 90 Elbow 3 Inches

Product Description

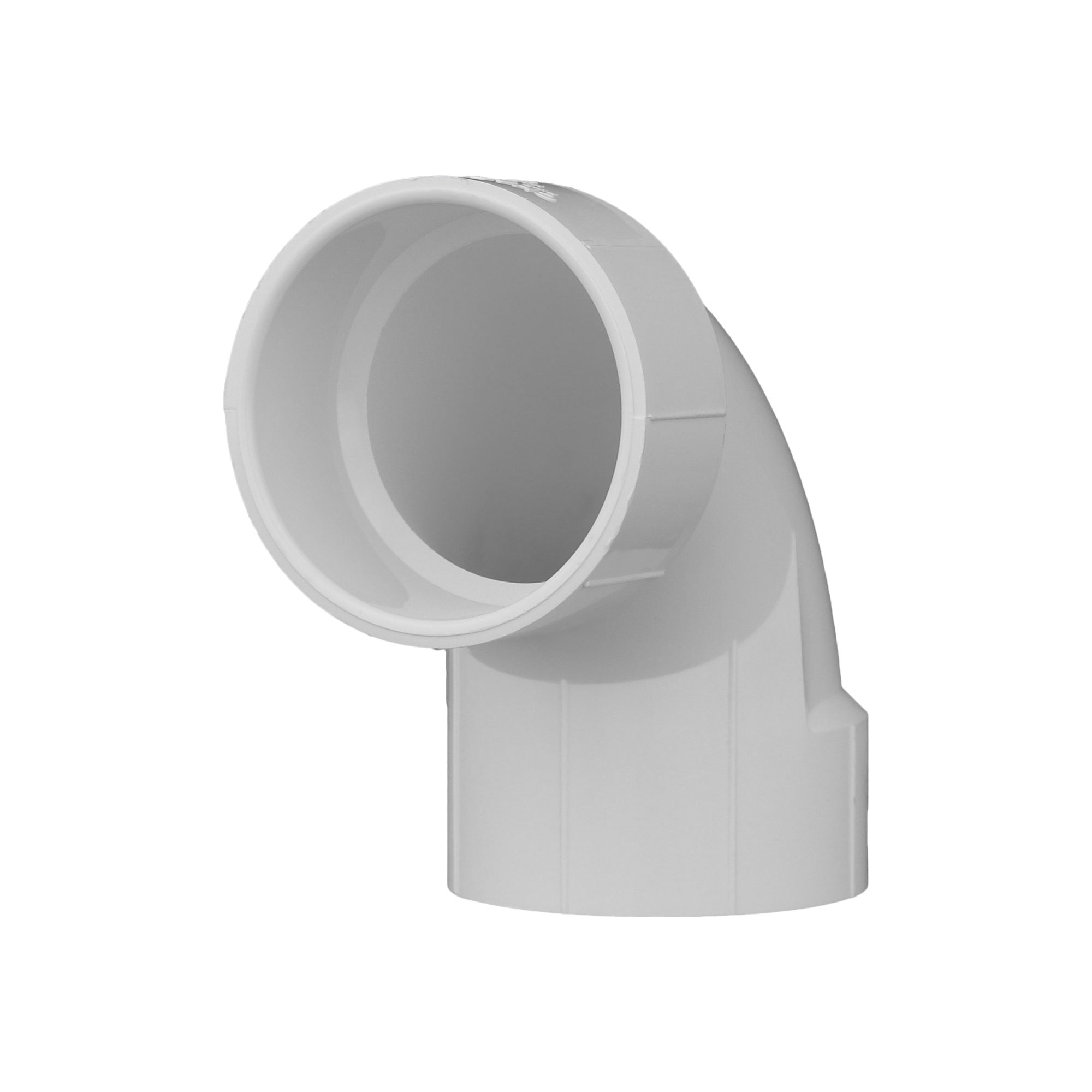

The CHARLOTTE PIPE PVC-300-3IN is a 3-inch PVC drain, waste, and vent (DWV) quarter-bend elbow with hub x hub connections. It redirects flow 90 degrees in gravity-fed drainage and vent piping systems. This fitting is rated for non-pressure DWV applications only and is not intended for systems where temperatures exceed 140 degrees F. Lightweight PVC construction keeps handling and installation straightforward on residential and commercial rough-in work. Licensed plumbers and pipefitters are the typical installers, using standard PVC solvent cement to make hub connections quickly and reliably.

This elbow is suited for drain, waste, and vent piping in residential and light commercial construction. It fits into gravity-flow waste elimination systems where no pressurized service is required. Common install scenarios include drain stack offsets, branch connections, and vent routing behind walls or in crawl spaces. The hub x hub end configuration accepts standard 3-inch PVC DWV pipe on both ends.

Key Features

• 90-degree quarter-bend geometry for drain stack and branch offset applications
• Hub x hub ends accept standard 3-inch PVC DWV pipe with solvent cement
• Rated for non-pressure DWV service up to 140 degrees F
• Lightweight PVC requires no special cutting tools
• Compatible joining methods include solvent cementing, threading, flanging, and roll-grooved joining
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 3-inch PVC DWV piping systems in non-pressure, gravity-fed drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and verify the drain line is clear before cutting into existing piping. Clean and dry both the pipe end and hub socket before applying PVC solvent cement, and allow full cure time before restoring flow. Do not use this fitting on pressurized supply lines or in systems where operating temperatures exceed 140 degrees F.

Technical Specifications

• Pipe Size: 3 inches
• Connection Type: Hub x Hub
• Bend Angle: 90 degrees
• Material: PVC
• Application: DWV (Drain, Waste, Vent) non-pressure systems
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942033577

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-300-3IN
