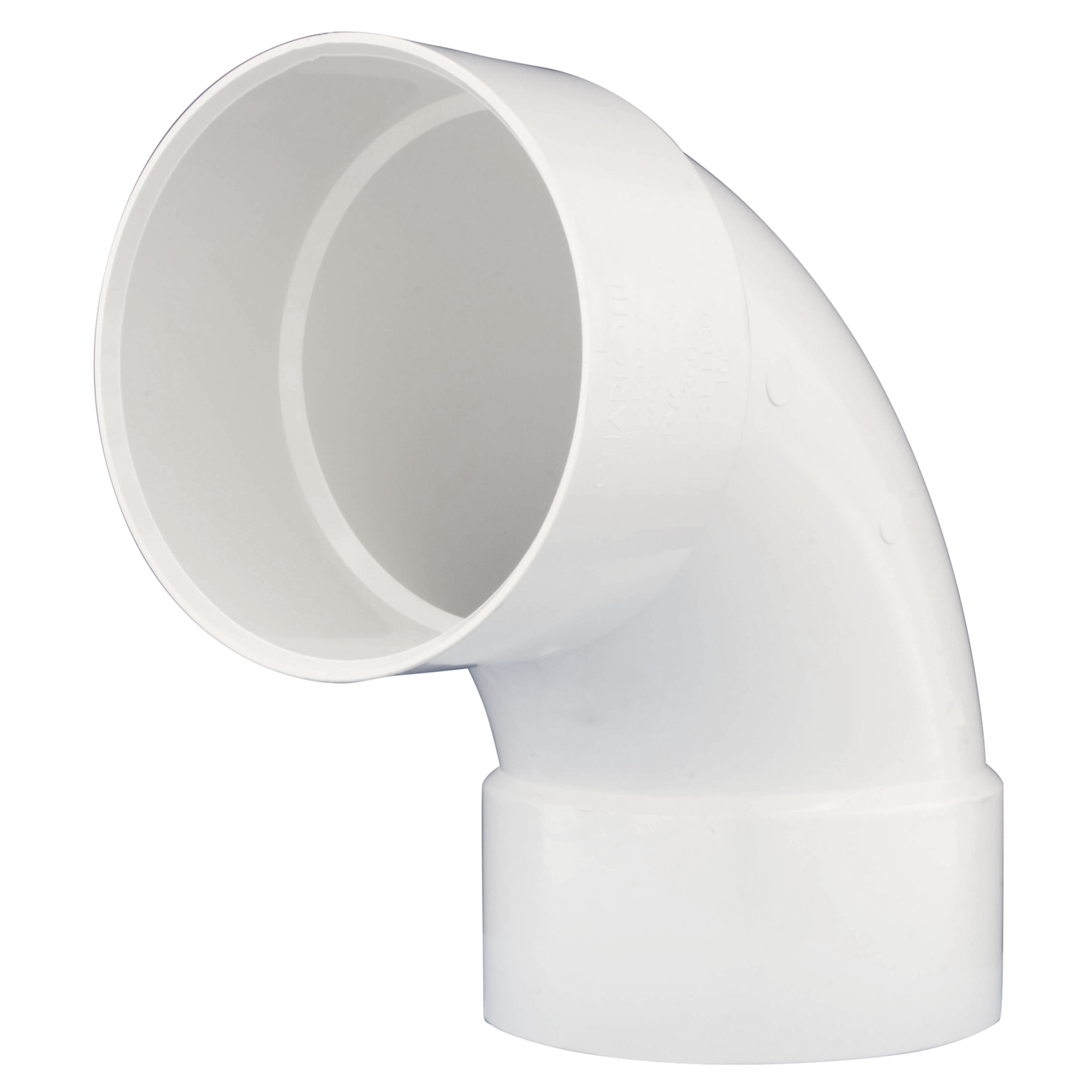

Charlotte Pipe PVC-300-14IN Pvc Dwv 90 Elbow 14 in Hub X Hub

Product Description

The CHARLOTTE PIPE PVC-300-14IN is a 14-inch PVC Schedule 40 DWV quarter-bend 90-degree elbow fitting with hub-by-hub solvent weld ends. It is a fabricated fitting designed for drain, waste, and vent piping systems in large-diameter drainage applications. Manufactured to ASTM F 1866 and listed with NSF, this fitting handles directional changes in gravity-flow drain lines. Licensed plumbers and pipefitters install this type of fitting in commercial and industrial DWV systems where large-bore PVC drainage pipe is specified.

This fitting is suited for large-diameter drain, waste, and vent installations in commercial buildings, industrial facilities, and municipal applications. At 14 inches, it is part of Charlotte Pipe's full-line DWV offering covering sizes 4 inches through 16 inches. Solvent weld hub connections provide a permanent, leak-resistant joint when installed with compatible PVC solvent cement and primer per manufacturer instructions.

Key Features

• Schedule 40 PVC construction for standard DWV service
• Hub x hub solvent weld ends for permanent bonded joints
• 90-degree (quarter-bend) configuration for directional changes in drain lines
• Meets ASTM F 1866 requirements for fabricated PVC DWV fittings
• NSF listed
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 14-inch PVC Schedule 40 DWV pipe systems conforming to ASTM standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the IPC or applicable local plumbing code. Deburr and clean pipe ends before applying primer and solvent cement to both the pipe and hub socket. Allow adequate cure time before introducing flow to the system. Follow the latest installation instructions published by Charlotte Pipe for joint preparation and assembly procedure.

Technical Specifications

• Material: PVC Schedule 40
• Size: 14 inches
• End Connection: Hub x Hub (solvent weld)
• Fitting Type: 90-Degree Elbow (Quarter Bend)
• Application: DWV (Drain, Waste, Vent)
• Standard: ASTM F 1866
• Listing: NSF Listed
• Country of Origin: USA
• UPC: 611942122189

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-300-14IN
