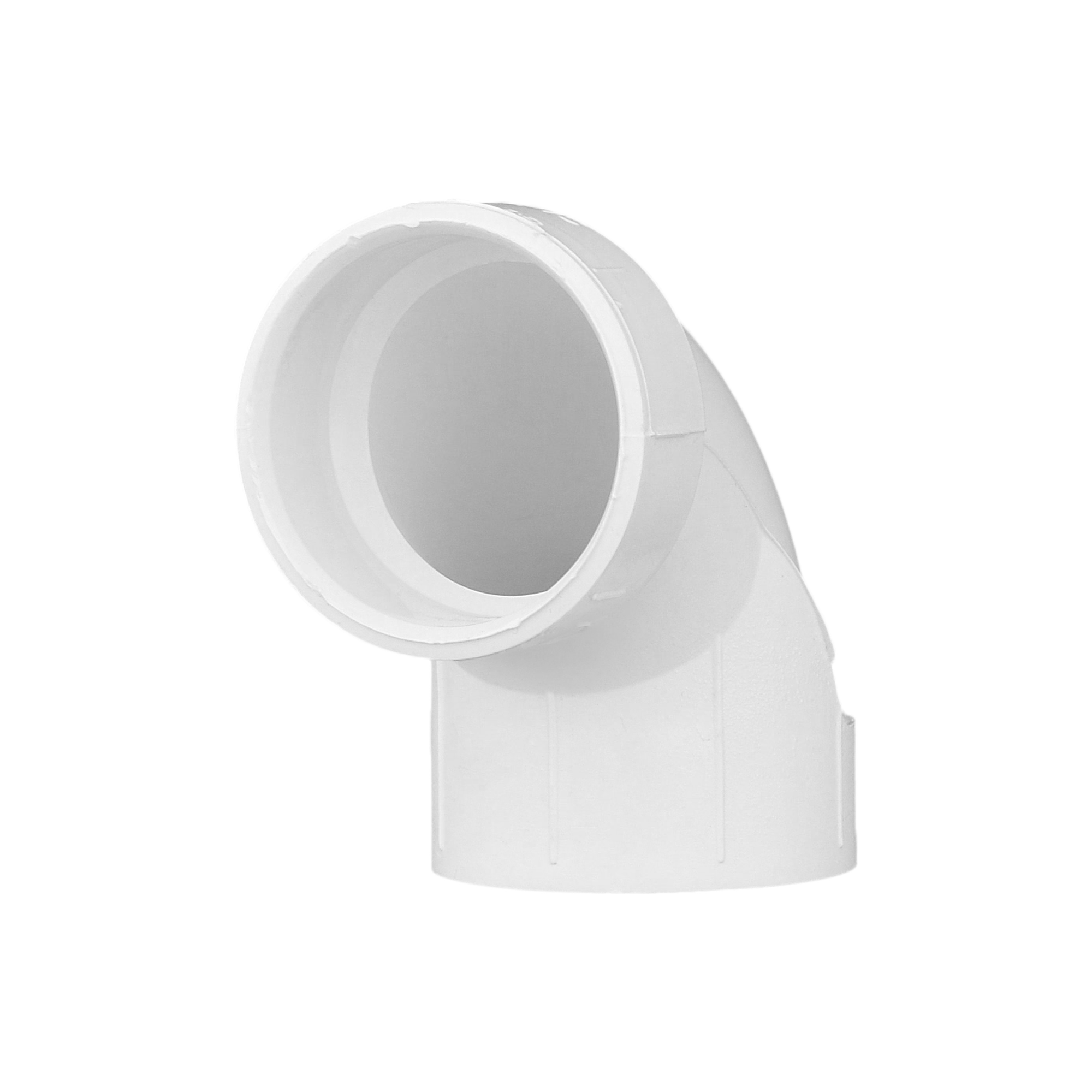

Charlotte Pipe PVC-300-1-1/2 Pvc Dwv 1/4 Bend 90 Elbow

Product Description

The CHARLOTTE PIPE PVC-300-1-1/2 is a 1-1/2 inch PVC DWV quarter-bend 90-degree elbow fitting with hub x hub connections, designed for drain, waste, and vent applications in non-pressure, gravity-fed drainage systems. Built from PVC, this fitting is lightweight and straightforward to install using standard solvent cement joining. It is rated for systems where temperatures do not exceed 140 degrees F. Plumbers and pipefitters install this type of fitting in residential and light commercial DWV rough-in work where a 90-degree directional change is required in a drain or vent line.

This fitting is used in gravity-fed waste elimination systems — typical applications include under-sink drain assemblies, lavatory drain connections, bathtub trap arms, and branch vent lines in residential and light commercial construction. No special cutting tools are required. The fitting accepts solvent cement joining and is also compatible with threading, flanging, and roll-grooved joining methods, giving installers flexibility in the field.

Key Features

• Hub x hub connection on both ends for solvent cement or alternative joining methods
• 1-1/2 inch pipe size suits common lavatory, sink, and vent branch applications
• Rated for non-pressure DWV systems up to 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard new-construction fitting for residential and light commercial PVC DWV piping systems using 1-1/2 inch schedule-weight pipe with hub connections.

Installation Notes

Installation is performed by licensed plumbers in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify the drain line is clear before beginning any fitting replacement or extension. Use the appropriate PVC solvent cement and primer as specified by the cement manufacturer and local code requirements. Do not use this fitting in pressurized water supply lines or in systems where operating temperature exceeds 140 degrees F.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Connection Type: Hub x Hub
• Bend Angle: 90 degrees (1/4 Bend)
• Application: DWV (Drain, Waste, Vent) — Non-Pressure Systems
• Maximum Temperature Rating: 140 degrees F
• Material: PVC
• Joining Methods: Solvent Cement, Threading, Flanging, Roll-Grooved
• Country of Origin: USA
• UPC: 611942033553

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-300-1-1/2
