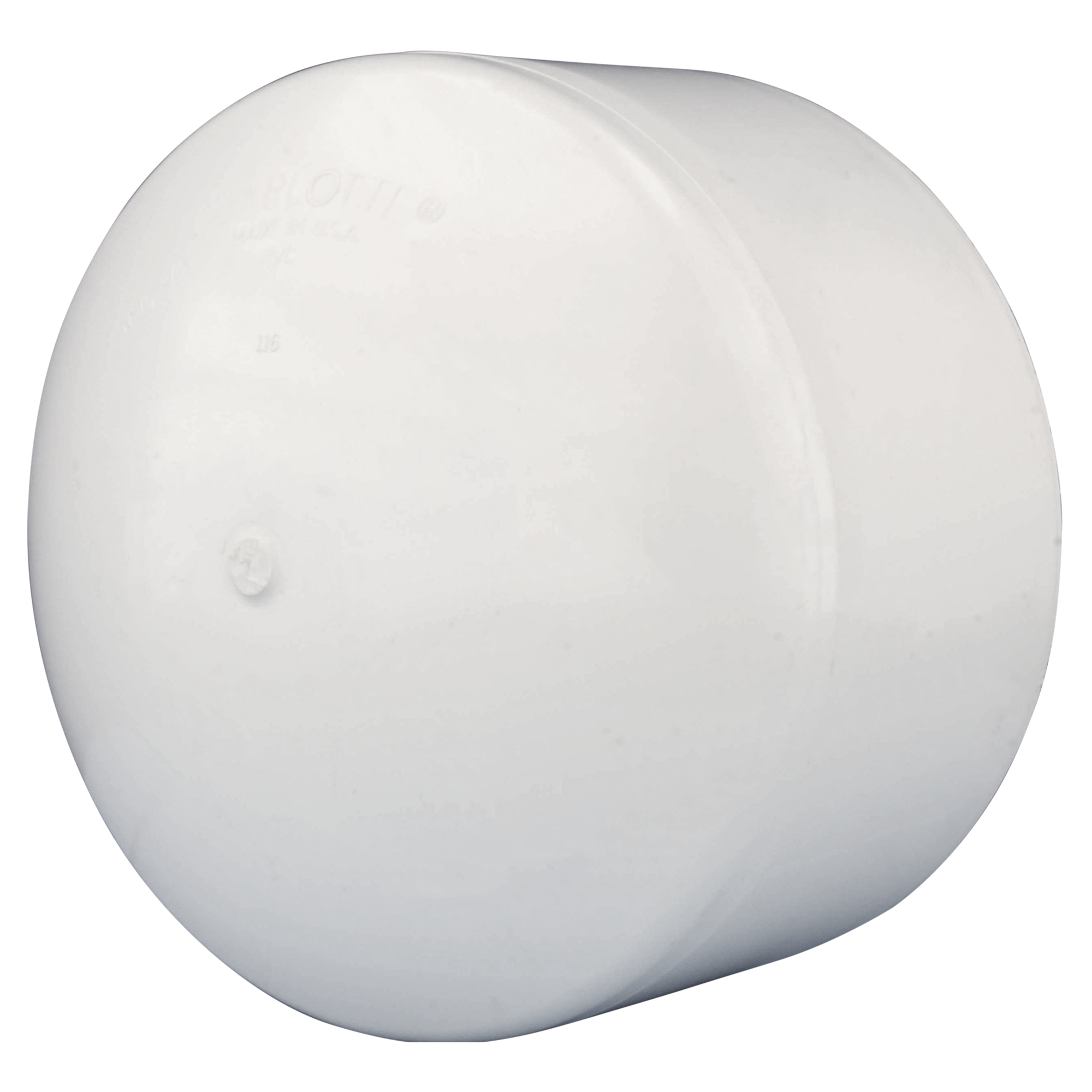

Charlotte Pipe PVC-116-12IN Pvc Dwv Cap 12 Inches

Product Description

The CHARLOTTE PIPE PVC-116-12IN is a 12-inch PVC cap fitting designed for drain, waste, and vent (DWV) applications. It terminates the end of a DWV pipe run in non-pressure, gravity-fed waste elimination systems. Rated for service up to 140 degrees F, this cap is manufactured from PVC, keeping it lightweight and straightforward to work with. Licensed plumbers and pipefitters install this fitting using solvent cement, threading, flanging, or roll-grooved joining methods — no specialty cutting tools required.

This cap is suited for residential and commercial DWV systems where a non-pressure termination is needed on a 12-inch pipe. Typical applications include capping drain or vent lines during rough-in, system testing, or permanent termination of unused branch runs. It is not intended for pressure service or systems where fluid temperatures exceed 140 degrees F.

Key Features

• 12-inch nominal size for large-diameter DWV pipe termination
• PVC construction — lightweight and corrosion resistant
• Compatible with solvent cement, threaded, flanged, and roll-grooved joining methods
• Rated for non-pressure gravity-fed drain, waste, and vent systems
• Maximum service temperature of 140 degrees F
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for 12-inch PVC DWV piping systems operating under non-pressure, gravity-fed conditions.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and isolate the affected drain or vent line before beginning work. When using solvent cement, follow the cement and primer manufacturer's cure time requirements before restoring flow to the system. Do not use this fitting in pressurized water supply or compressed air lines.

Technical Specifications

• Pipe Size: 12 inches
• Material: PVC
• System Type: DWV — Drain, Waste, and Vent
• Maximum Temperature: 140 degrees F
• Pressure Rating: Non-pressure service only
• Joining Methods: Solvent cement, threaded, flanged, roll-grooved
• Country of Origin: USA
• UPC: 611942111220

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-116-12IN
