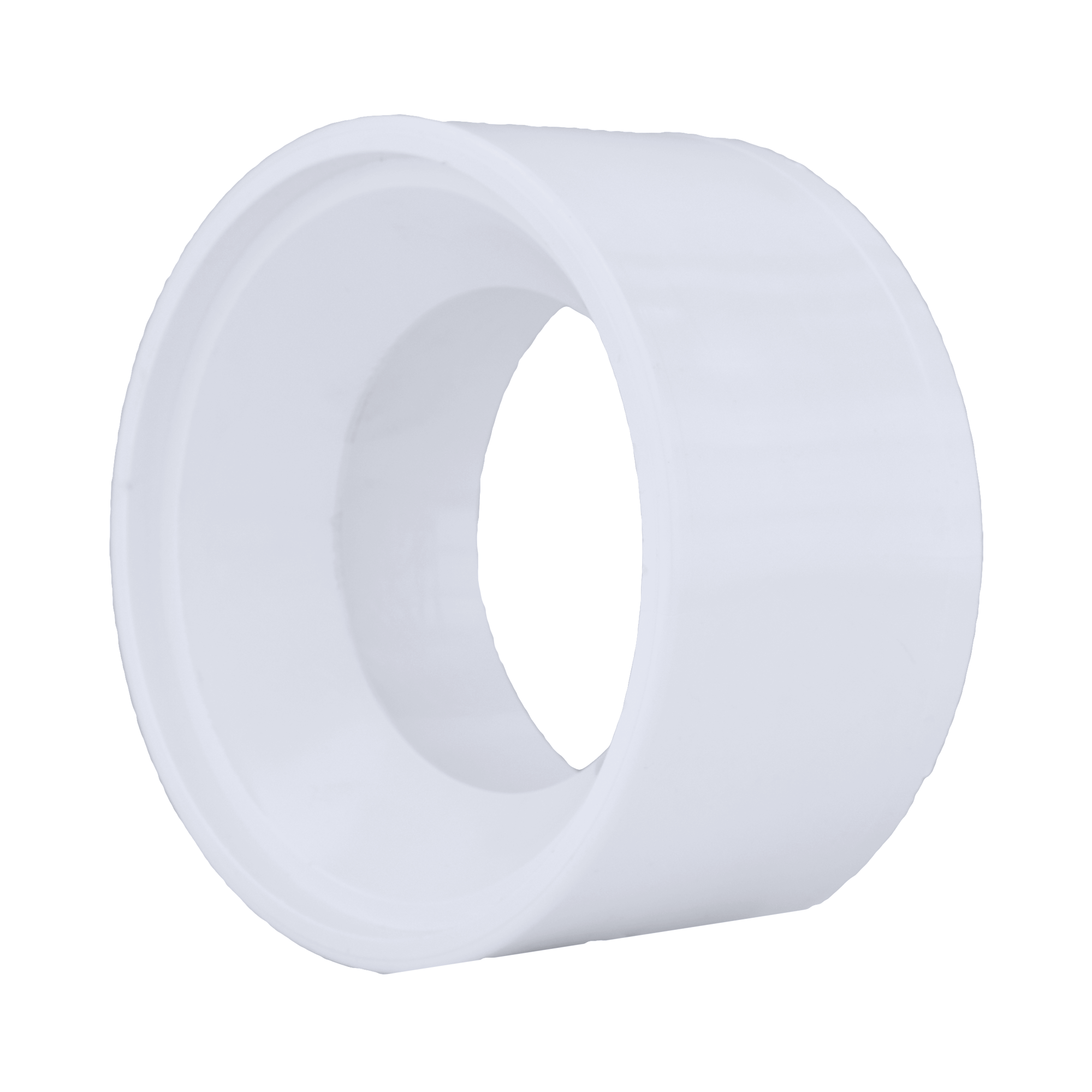

Charlotte Pipe PVC-107-6X4 Pvc Dwv Flush Bushing 6x4

Product Description

The CHARLOTTE PIPE PVC-107-6X4 is a PVC DWV flush bushing designed to reduce a 6-inch hub connection down to a 4-inch spigot connection in drain, waste, and vent piping systems. This fitting is manufactured for non-pressure, gravity-fed waste elimination applications where operating temperatures will not exceed 140 degrees F. Made from lightweight PVC, it installs using standard solvent cement without special cutting tools. Licensed plumbers and pipefitters use this bushing when transitioning between pipe sizes in residential and light commercial DWV systems.

This flush bushing is suited for residential and commercial drain, waste, and vent installations where a pipe size reduction is needed at a hub joint. It is commonly installed in sanitary drain lines, vent stacks, and waste branch connections. The spigot-by-hub configuration allows the bushing to seat flush inside the larger fitting, keeping the transition compact within the piping assembly. All Charlotte Pipe PVC DWV fittings are manufactured in the USA.

Key Features

• Flush bushing design reduces 6-inch hub to 4-inch spigot for compact in-line transitions
• Rated for non-pressure, gravity-fed DWV systems only
• Maximum service temperature of 140 degrees F
• Solvent cement joining — no special tools required for cutting or assembly
• Lightweight PVC construction simplifies handling and installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and commercial PVC DWV piping systems using 6-inch hub to 4-inch spigot connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the drain line is clear before beginning work. Apply approved PVC solvent cement to both the spigot end and the inside of the mating hub, then seat the bushing firmly and hold for proper cure time per the cement manufacturer instructions. Do not use this fitting in pressure piping, hot water supply lines, or any application exceeding 140 degrees F.

Technical Specifications

• Material: PVC
• Fitting Type: Flush Bushing
• Inlet Size: 6 inches (Hub)
• Outlet Size: 4 inches (Spigot)
• Connection Type: Spigot x Hub (Solvent Cement)
• Application: DWV — Drain, Waste, and Vent (Non-Pressure)
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942032686

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-107-6X4
