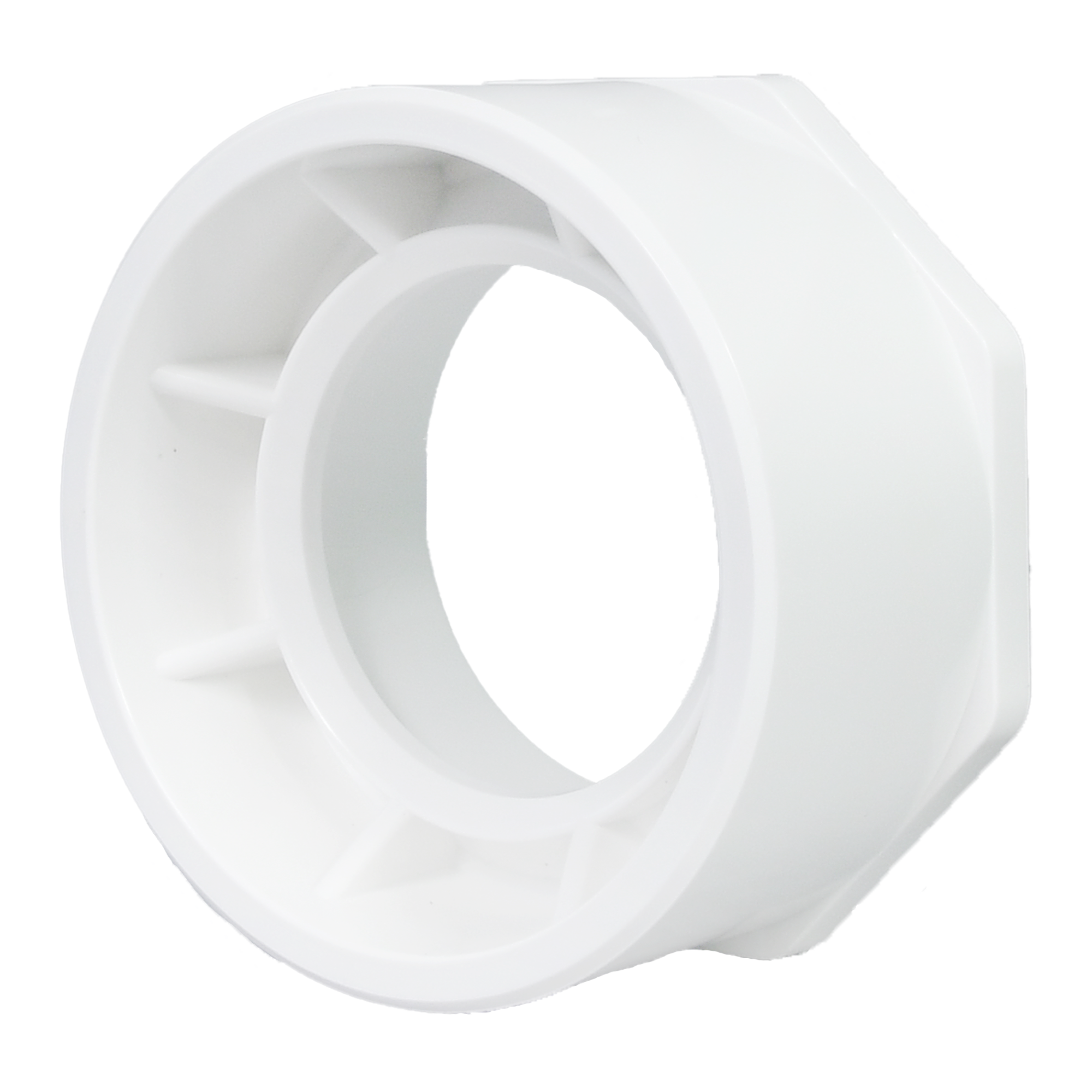

Charlotte Pipe PVC-107-3X2 Pvc Dwv Flush Bushing 3x2

Product Description

The CHARLOTTE PIPE PVC-107-3X2 is a PVC drain, waste, and vent flush bushing used to reduce a 3-inch spigot connection to a 2-inch hub in gravity-fed DWV piping systems. This bushing is rated for non-pressure applications only and is not suitable for systems where temperatures exceed 140 degrees F. Manufactured from PVC, it is lightweight and compatible with standard solvent cement joining. Licensed plumbers and pipefitters install this fitting in residential and light commercial drain and vent rough-in work.

This flush bushing is designed for gravity-fed waste elimination and venting systems where a concentric reducer fitting is needed at a 3-inch to 2-inch transition. It is suited for drain stacks, branch lines, and vent assemblies in both residential and commercial plumbing rough-in applications. The flush bushing profile keeps the fitting flush with the pipe end, which is useful in tight spaces or where a standard bushing would protrude beyond the fitting socket.

Key Features

• Flush bushing design allows 3-inch spigot to 2-inch hub reduction in confined spaces
• PVC construction is lightweight and easy to cut with standard hand tools or power saws
• Compatible with solvent cement joining — no special tools required
• Rated for non-pressure drain, waste, and vent service up to 140 degrees F
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and commercial PVC DWV piping systems using 3-inch to 2-inch spigot-by-hub connections.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off water supply and ensure the system is depressurized and drained before beginning work. Clean and dry all mating surfaces before applying solvent cement, and allow full cure time before restoring flow. This fitting is rated for non-pressure DWV service only and must not be used in pressurized supply lines.

Technical Specifications

• Material: PVC
• Connection Type: Spigot x Hub
• Inlet Size: 3 inches
• Outlet Size: 2 inches
• Application: Drain, Waste, and Vent (DWV) — Non-Pressure
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942032655

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-107-3X2
