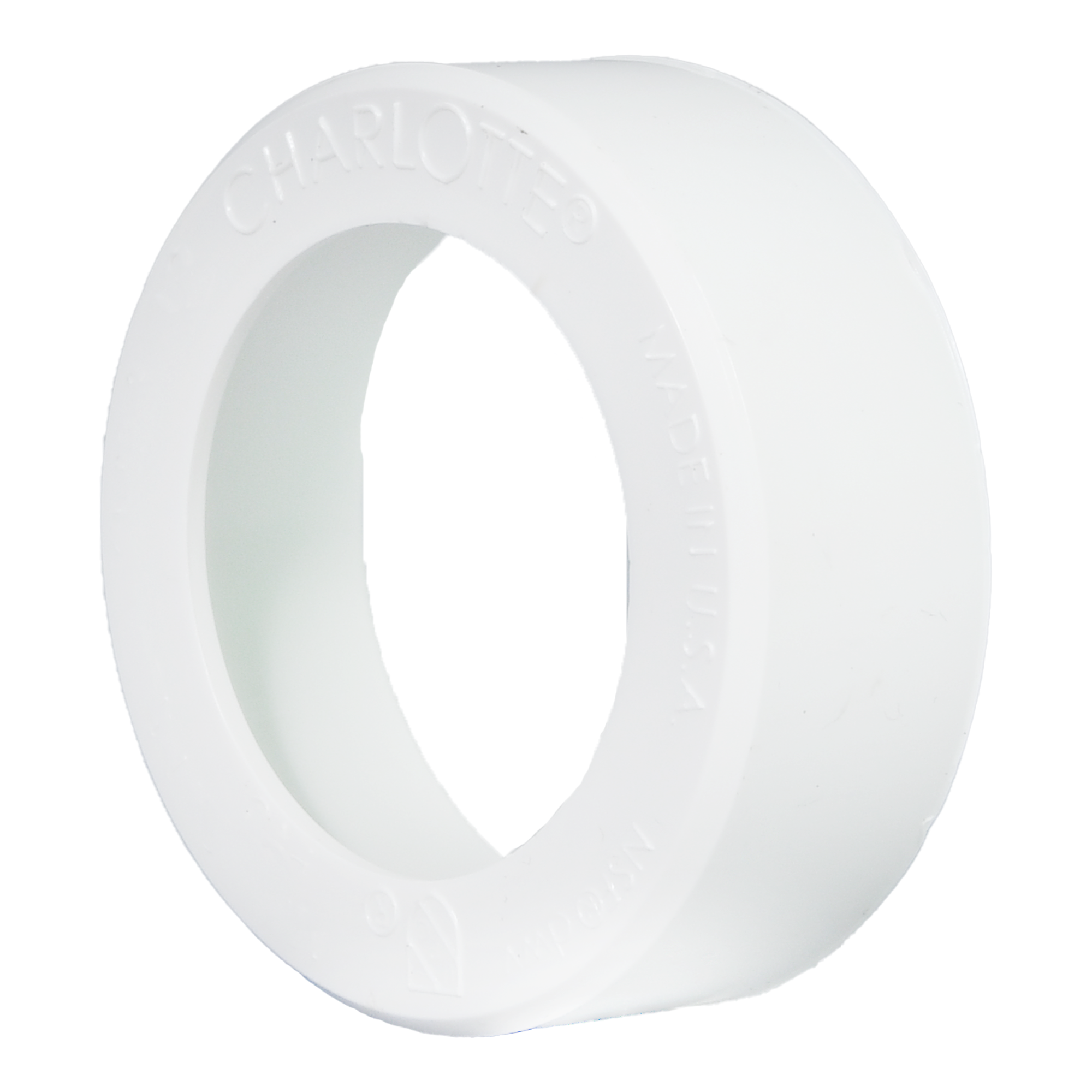

Charlotte Pipe PVC-107-2X1-1/2 Pvc Dwv Flush Bushing

Product Description

The CHARLOTTE PIPE PVC-107-2X1-1/2 is a PVC DWV flush bushing designed for drain, waste, and vent piping systems. It transitions from a 2-inch spigot end to a 1-1/2-inch hub, allowing a reduction in line size within a gravity-fed DWV assembly. This fitting is rated for non-pressure applications only and is not intended for systems where temperatures exceed 140 degrees F. Lightweight PVC construction keeps handling and installation straightforward. Licensed plumbers install this bushing using standard solvent cement, with no specialty cutting tools required. It is manufactured in the USA.

This flush bushing is suited for residential and light commercial drain, waste, and vent installations where a spigot-to-hub reduction is needed within a PVC DWV system. Typical applications include branch line reductions in drain stacks, fixture drain tie-ins, and vent reductions. The flush bushing profile sits flush inside the larger fitting hub, keeping the transition compact and maintaining smooth flow characteristics in the drain line.

Key Features

• 2-inch spigot x 1-1/2-inch hub configuration for in-line size reduction
• Rated for non-pressure drain, waste, and vent service only
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement joining — no specialty tools required
• Lightweight PVC material simplifies handling and installation
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement fitting for residential and light commercial PVC DWV piping systems operating under gravity-fed, non-pressure conditions.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and verify the drain system is depressurized before cutting into an existing line. Clean and prime both mating surfaces before applying solvent cement, and allow full cure time before restoring flow. This fitting is not rated for pressure service or hot-water supply lines.

Technical Specifications

• Fitting Type: Flush Bushing
• Connection Type: Spigot x Hub
• Inlet Size: 2 inches
• Outlet Size: 1-1/2 inches
• Material: PVC
• Service Type: Non-Pressure DWV (Drain, Waste, Vent)
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942032631

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-107-2X1-1/2
