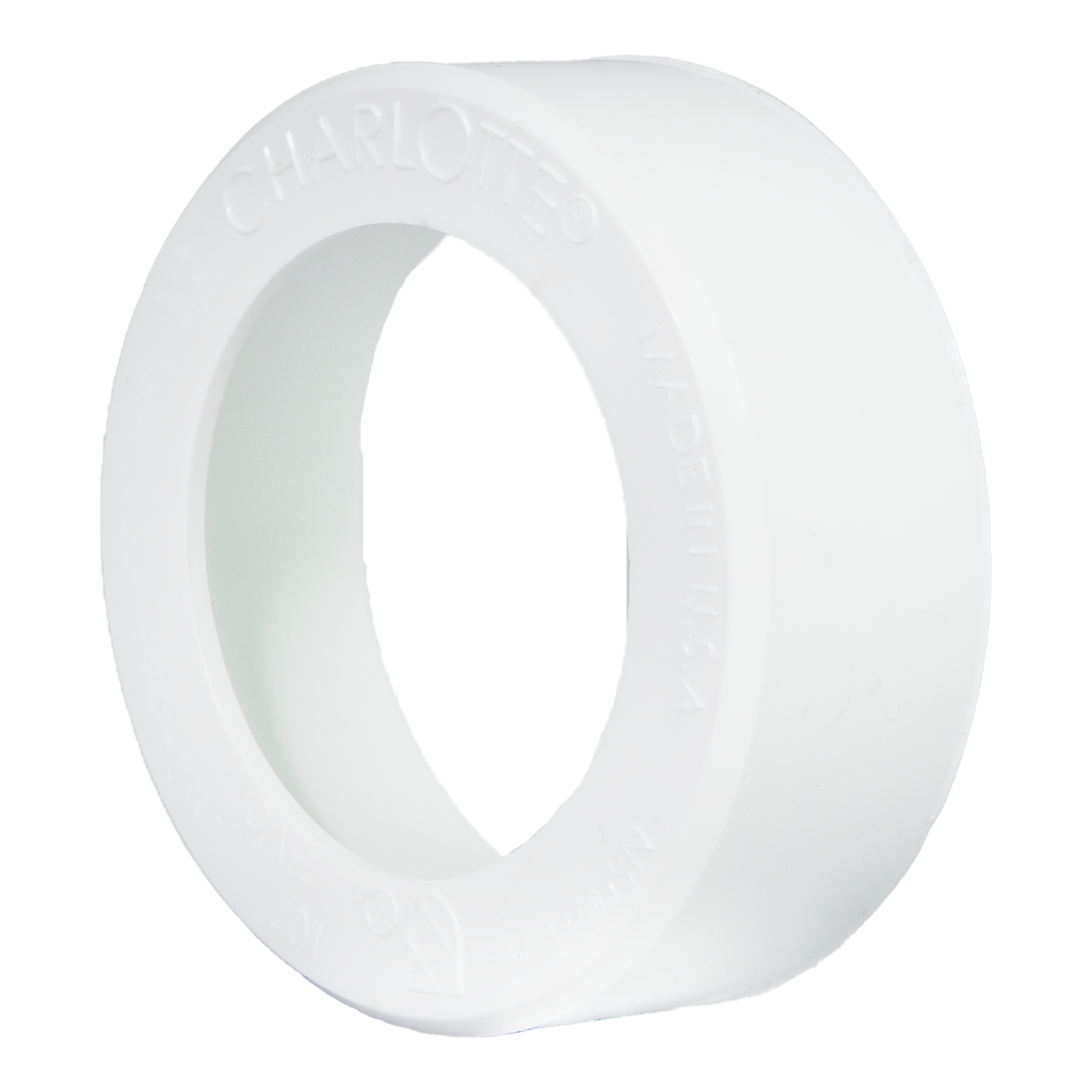

Charlotte Pipe PVC-107-1-1/2X1-1/4 Pvc Dwv Flush Bushing

Product Description

The CHARLOTTE PIPE PVC-107-1-1/2X1-1/4 is a PVC flush bushing designed for drain, waste, and vent (DWV) piping systems. It transitions from a 1.5-inch spigot end to a 1.25-inch hub, allowing plumbers to step down pipe size within a gravity-fed drainage system. This fitting is rated for non-pressure applications only and is not suitable for systems where temperatures exceed 140 degrees F. Manufactured from PVC, it is lightweight and resistant to corrosion, making it a practical choice for residential and light commercial DWV rough-in work.

This bushing is used in drain, waste, and vent assemblies where a pipe size reduction is needed at a fitting connection. Typical applications include bathroom, kitchen, and utility drain lines where a larger hub fitting must accept a smaller pipe run. The spigot-by-hub configuration allows the bushing to seat inside a standard DWV hub fitting on one end while receiving a 1.25-inch pipe on the other. It is suited for residential new construction, remodel plumbing, and commercial light-duty drainage installations.

Key Features

• Spigot x Hub (SPGxHUB) configuration for in-line size reduction in DWV systems
• Rated for non-pressure, gravity-fed drain, waste, and vent service
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement joining — no special cutting tools required
• Lightweight PVC construction simplifies handling and installation
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial PVC DWV piping systems requiring a 1.5-inch to 1.25-inch spigot-to-hub reduction.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Solvent cement joining is the standard method — ensure pipe and fitting surfaces are clean and dry before applying primer and cement per the cement manufacturer's instructions. This fitting is rated for non-pressure DWV service only; do not use in pressurized water supply lines. Verify the system will not exceed 140 degrees F in continuous service before installation.

Technical Specifications

• Material: PVC
• Connection Type: Spigot x Hub (SPG x HUB)
• Inlet Size: 1.5 inches (Spigot)
• Outlet Size: 1.25 inches (Hub)
• Application: Drain, Waste, and Vent (DWV) — Non-Pressure
• Maximum Temperature: 140 degrees F
• UPC: 611942032617
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-107-1-1/2X1-1/4
