Charlotte Pipe PVC-104P-1-1/2X1-1/4 Dwv Female Trap Adapter

Product Description

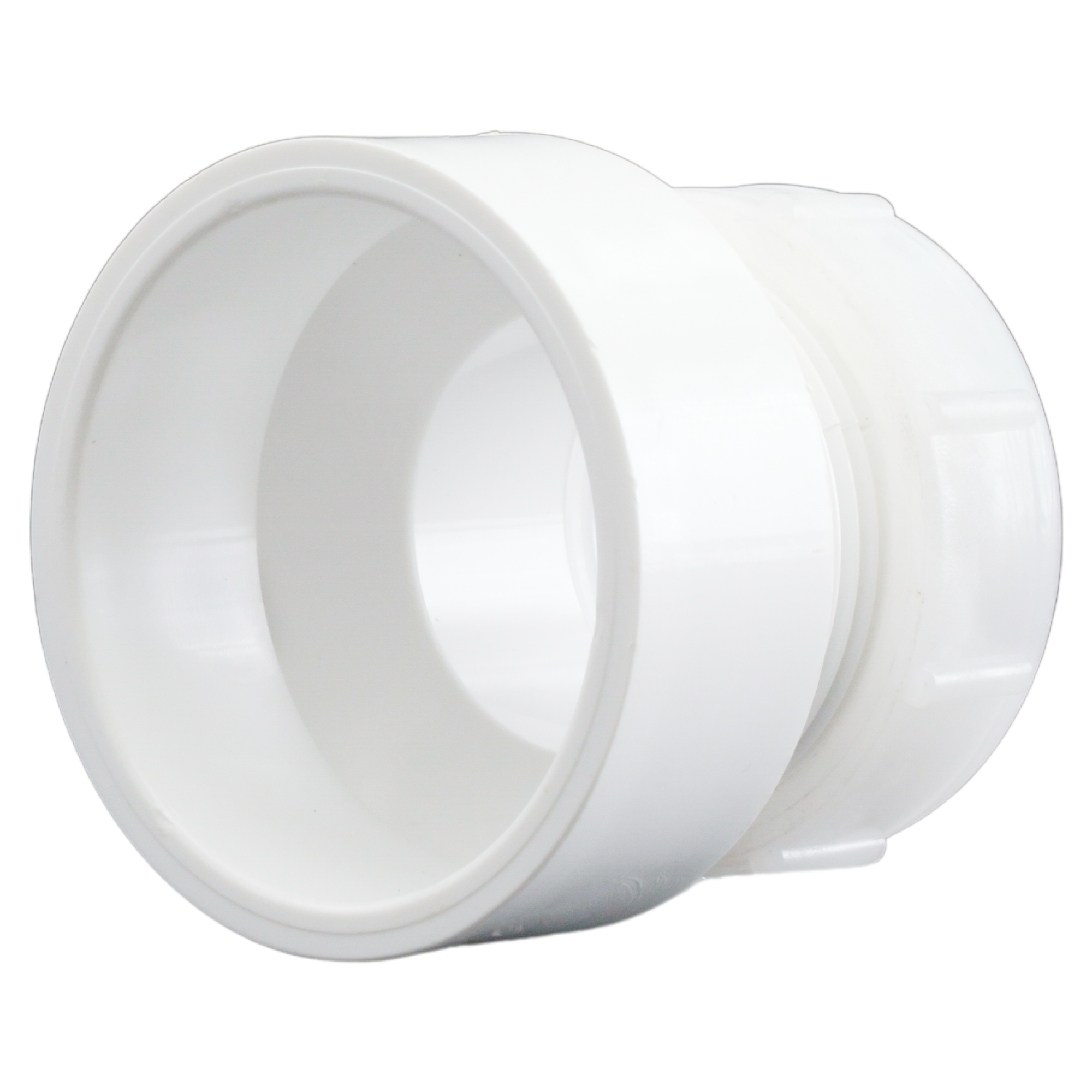

The CHARLOTTE PIPE PVC-104P-1-1/2X1-1/4 is a PVC DWV female trap adapter with a plastic nut, designed for drain, waste, and vent applications in non-pressure gravity-fed systems. The hub end accepts a 1-1/2 inch solvent-cement connection, while the threaded slip end accommodates a 1-1/4 inch tubular trap arm secured by the included plastic nut. This fitting is rated for temperatures not exceeding 140 degrees F. Lightweight PVC construction makes handling and positioning straightforward. Licensed plumbers install this adapter during trap installations under sinks and lavatories, connecting P-traps to hub-end drain stub-outs.

This fitting is used in residential and light commercial plumbing systems wherever a PVC DWV hub stub-out must transition to a 1-1/4 inch tubular slip trap connection. Common applications include kitchen sink, bathroom lavatory, and utility sink drain rough-ins. The plastic nut allows tool-free hand-tightening for final trap arm adjustment, and the hub end is joined with standard PVC solvent cement. No special tools are required for cutting PVC pipe prior to installation.

Key Features

• Hub inlet accepts 1-1/2 inch PVC pipe with solvent cement — no threading or special tooling required
• 1-1/4 inch tubular slip outlet with plastic nut for hand-tightened trap arm connection
• Rated for non-pressure DWV service up to 140 degrees F
• Lightweight PVC construction simplifies handling and reduces installation time
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style DWV fitting for non-pressure gravity drain, waste, and vent systems using standard 1-1/2 inch hub PVC pipe and 1-1/4 inch tubular trap arms.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and clear the drain line before beginning work. Solvent-cement the hub end using a PVC-rated primer and cement; allow full cure time before restoring flow. Hand-tighten the plastic nut only — do not use pipe wrenches or pliers on the plastic nut, as over-torquing will crack it.

Technical Specifications

• Material: PVC
• Inlet Size: 1-1/2 inches (Hub)
• Outlet Size: 1-1/4 inches (Tubular Slip)
• Connection Type: Hub x Tubular Slip with Plastic Nut
• System Type: DWV (Drain, Waste, Vent) — Non-Pressure
• Max Temperature: 140 degrees F
• UPC: 611942032235
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-104P-1-1/2X1-1/4
