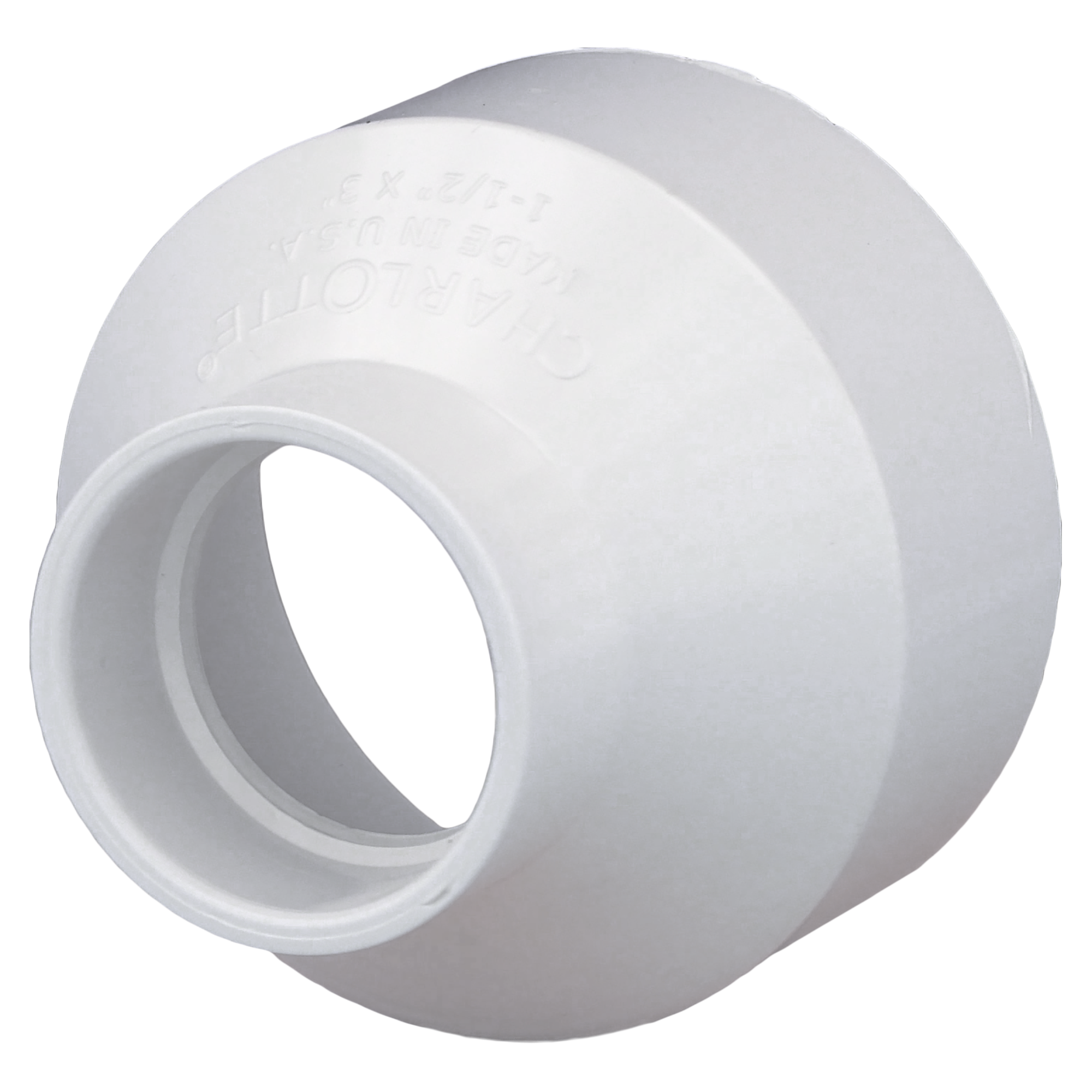

Charlotte Pipe PVC-102-1-1/2X3 Pvc-dwv Increaser Reducer

Product Description

The CHARLOTTE PIPE PVC-102-1-1/2X3 is a PVC-DWV increaser reducer coupling designed for drain, waste, and vent piping systems. It transitions between 1-1/2 inch and 3 inch pipe sizes in gravity-fed, non-pressure drain lines. Rated for service up to 140 degrees F, this fitting handles standard residential and light commercial DWV applications. PVC construction keeps weight low and simplifies handling on the job. Solvent cement joining eliminates the need for special cutting tools, and the fitting also supports threading, flanging, and roll-groove joining methods where the application calls for it.

This coupling is used in gravity-fed waste elimination systems where a pipe size change is needed between a 1-1/2 inch branch line and a 3 inch main drain or stack. Typical installations include bathroom sink drains, laundry standpipes, and similar branch-to-stack transitions in residential or light commercial buildings. It is not rated for pressure service. Licensed plumbers and pipefitters install this fitting in rough-in and remodel work under applicable plumbing codes.

Key Features

• Transitions 1-1/2 inch pipe to 3 inch pipe in DWV drain, waste, and vent systems
• Non-pressure rated for gravity-fed waste elimination only
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threaded, flanged, and roll-groove joining methods
• Lightweight PVC construction requires no special cutting tools
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and light commercial PVC-DWV piping systems in non-pressure drain, waste, and vent applications.

Installation Notes

Installation is performed by licensed plumbers in accordance with the International Plumbing Code and applicable local codes. Shut off water supply and ensure the line is depressurized and drained before cutting into an existing system. When using solvent cement, follow manufacturer cure time requirements before restoring flow. Do not use this fitting in pressure piping, hot water supply lines, or any system exceeding 140 degrees F.

Technical Specifications

• Material: PVC
• System Type: DWV (Drain, Waste, Vent)
• Inlet Size: 3 inches
• Outlet Size: 1-1/2 inches
• Maximum Temperature: 140 degrees F
• Pressure Rating: Non-pressure (gravity-fed only)
• Joining Methods: Solvent cement, threaded, flanged, roll-groove
• Country of Origin: USA
• UPC: 611942032044

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-102-1-1/2X3
