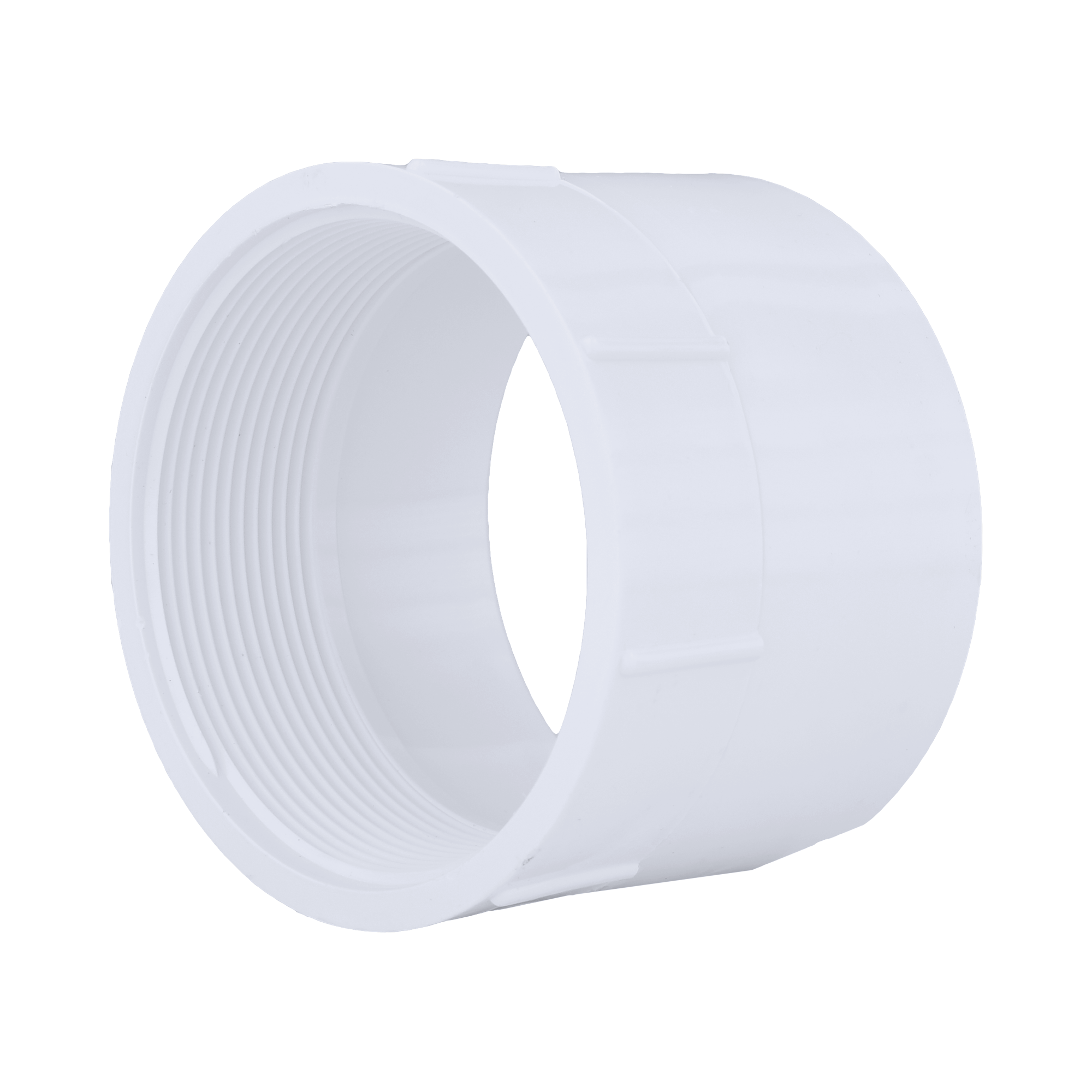

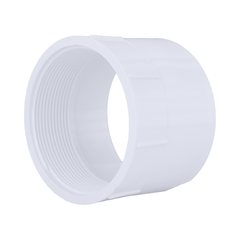

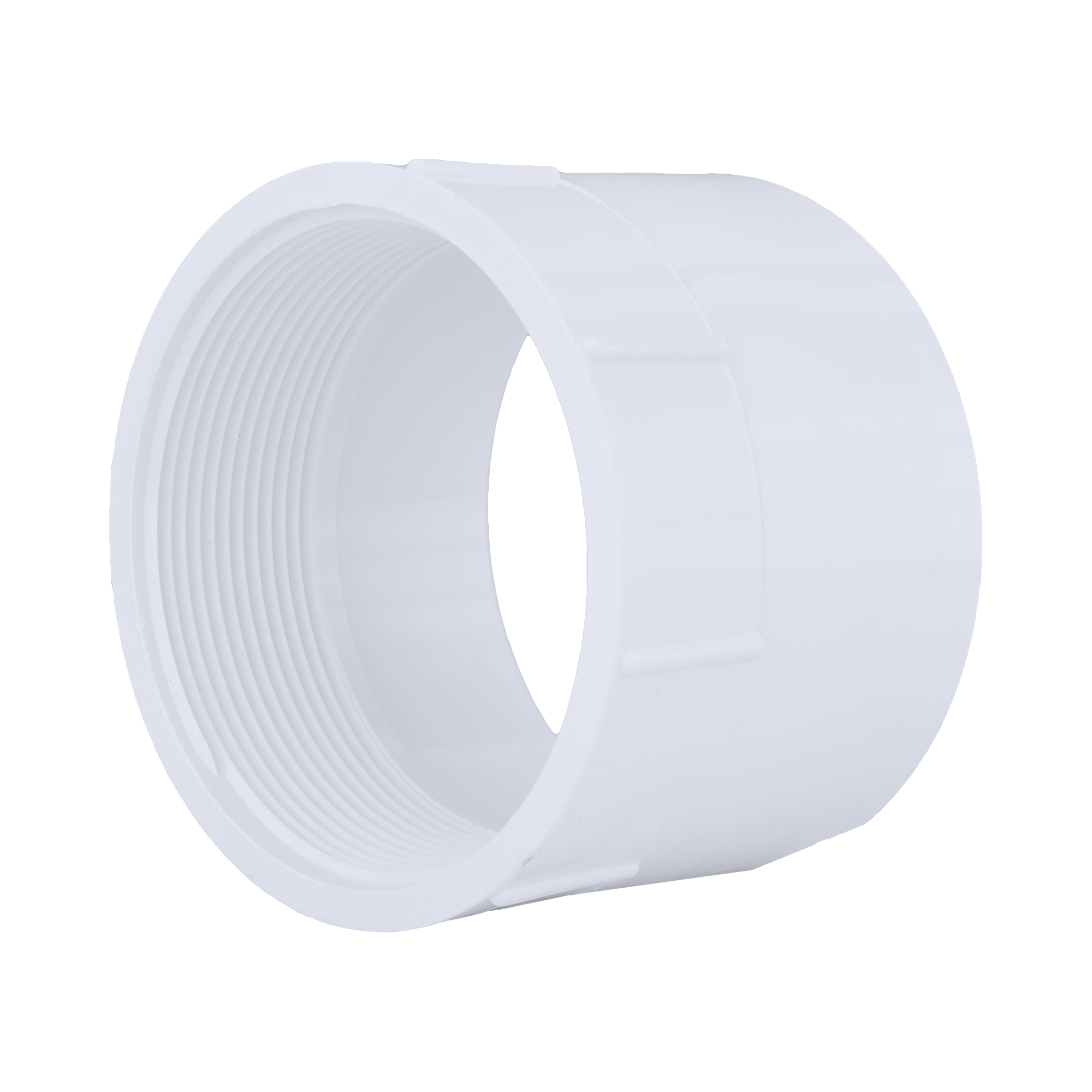

Charlotte Pipe PVC-101-4IN 4 Inch Pvc Dwv Female Adapter

Product Description

The CHARLOTTE PIPE PVC-101-4IN is a 4-inch PVC female adapter fitting designed for drain, waste, and vent (DWV) applications. This fitting connects into gravity-fed waste elimination systems and is rated for non-pressure service only, with a maximum temperature rating of 140 degrees F. PVC construction keeps the fitting lightweight and easy to handle on the job. Plumbers and pipefitters install this adapter using solvent cement, and the material requires no specialized cutting tools, making it a straightforward component for rough-in and repair work on residential and light commercial drain systems.

This fitting is suited for residential and commercial DWV piping systems where a female socket connection is needed to transition or extend 4-inch drain lines. Common applications include sanitary drain lines, vent stacks, and waste branch connections. The 4-inch size is standard for main drain runs, closet flanges, and building drain tie-ins. Because it is a non-pressure fitting, it is not approved for pressurized water supply lines or any system that operates above gravity-flow conditions.

Key Features

• 4-inch female socket end accepts standard 4-inch PVC DWV pipe
• Rated for non-pressure, gravity-fed drain, waste, and vent systems
• Maximum service temperature of 140 degrees F
• Lightweight PVC construction requires no special cutting tools
• Compatible with solvent cement joining for a leak-tight, permanent connection
• Manufactured in the USA by Charlotte Pipe

Compatibility

Designed as an OEM-style replacement and new-installation fitting for 4-inch PVC DWV piping systems operating under gravity-flow, non-pressure conditions.

Installation Notes

Installation is performed by licensed plumbers following applicable IPC or local plumbing code requirements. Before beginning work, isolate the drain section and ensure the pipe and fitting surfaces are clean and dry prior to applying solvent cement. Apply a listed PVC primer and solvent cement per the cement manufacturer's instructions, and allow adequate cure time before restoring flow. This fitting is not rated for pressure service and must not be installed in supply or pressurized piping systems.

Technical Specifications

• Pipe Size: 4 inches
• Material: PVC
• System Type: Drain, Waste and Vent (DWV)
• Pressure Rating: Non-pressure gravity-flow only
• Maximum Temperature: 140 degrees F
• Joining Method: Solvent cement
• UPC: 611942032013
• Country of Origin: USA

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-101-4IN
