Charlotte Pipe PVC-100-16IN Pvc Sch 40 Dwv Coupling 16 in

Product Description

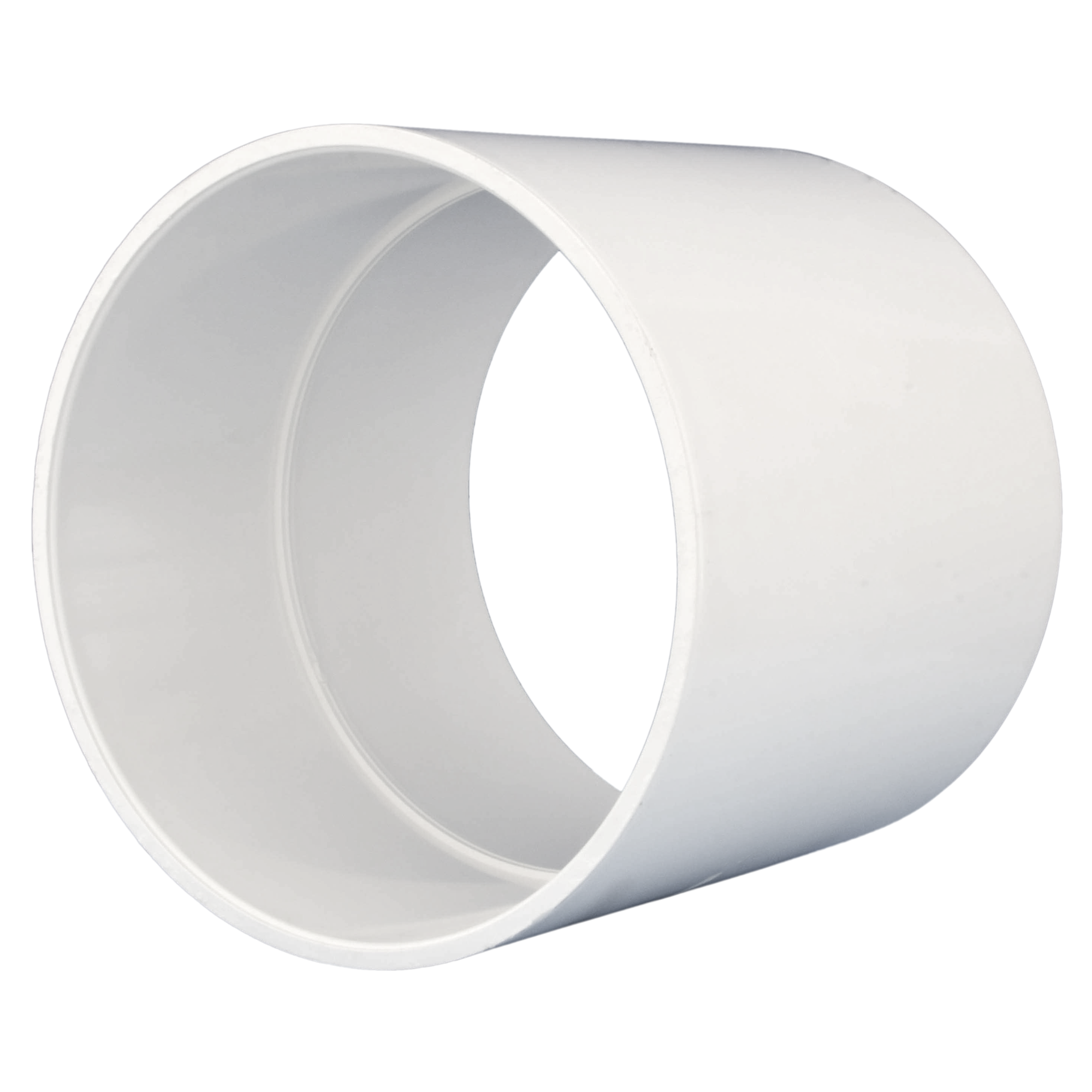

The CHARLOTTE PIPE PVC-100-16IN is a 16-inch PVC Schedule 40 DWV coupling designed for drain, waste, and vent piping systems. It uses solvent weld joining and is fabricated to meet the requirements of ASTM F 1866. This fitting is part of Charlotte Pipe's full-line DWV offering, which covers sizes from 1-1/2 inches through 16 inches. Licensed plumbers and pipefitters install this coupling in residential and commercial DWV systems where a straight, same-diameter pipe connection is required.

This coupling is suited for large-diameter drain, waste, and vent applications in both residential and commercial construction. The 16-inch size is commonly used in main building drain runs, large commercial waste stacks, and underground horizontal drain piping where Schedule 40 PVC is the specified material. Installation must follow the current instructions published by Charlotte Pipe.

Key Features

• 16-inch PVC Schedule 40 DWV coupling for drain, waste, and vent service
• Solvent weld construction for a permanent, leak-resistant joint
• Fabricated fitting meets ASTM F 1866 requirements
• Listed with NSF
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and standard fitting for 16-inch PVC Schedule 40 DWV pipe systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and the latest instructions published by Charlotte Pipe. Solvent weld joints require proper primer and cement rated for PVC DWV service. Ensure pipe ends are cut square, deburred, and clean before applying solvent cement. Allow adequate cure time before pressurizing or flowing the system.

Technical Specifications

• Pipe Size: 16 inches
• Material: PVC
• Schedule: Schedule 40
• Connection Type: Solvent Weld
• Application: DWV (Drain, Waste, Vent)
• Standard: ASTM F 1866
• Certification: NSF Listed
• Country of Origin: USA
• UPC: 611942121915

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC-100-16IN
