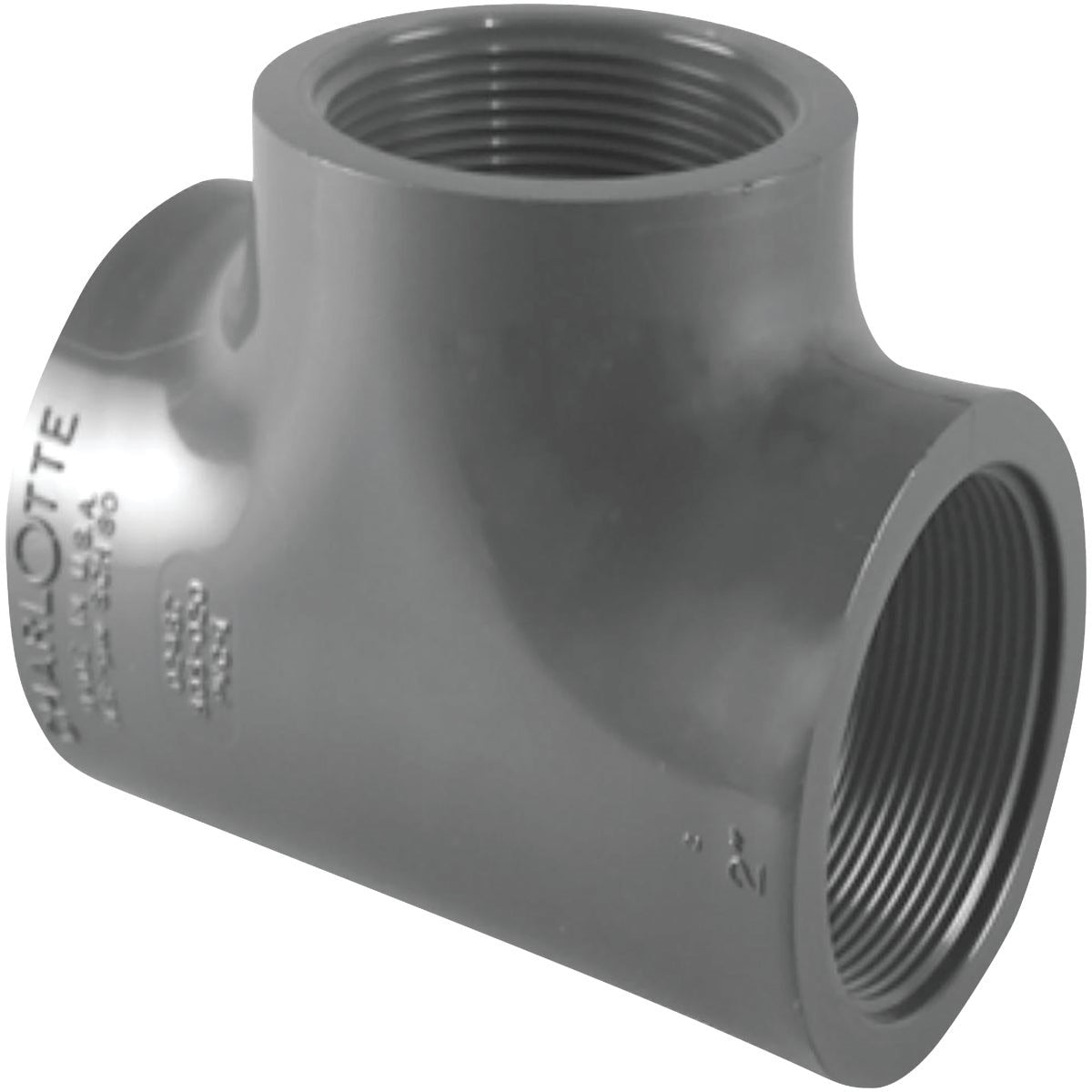

Charlotte Pipe Pvc 08402 1000HA 1/2 in Fip Sch 80 Pvc Tee

Product Description

The CHARLOTTE PIPE PVC 08402 1000HA is a Schedule 80 PVC pressure fitting in a tee configuration with female iron pipe (FIP) threads on all three ports. Rated for pressure service, Schedule 80 PVC offers heavier wall thickness than Schedule 40, making it suitable for higher-pressure plumbing and industrial piping applications. All three connections are 1/2 inch FIP threaded, allowing the fitting to receive male-threaded pipe or adapters on the run and branch. Licensed plumbers and pipefitters install this fitting in systems where a threaded branch takeoff of the same size as the main line is required.

This fitting is used in residential and light commercial plumbing, irrigation, chemical distribution, and industrial process piping where Schedule 80 PVC is specified. The all-FIP configuration makes it well suited for systems that use threaded connections throughout, eliminating the need for solvent-weld transitions at the tee. PTFE thread tape is recommended on all threaded joints to ensure a leak-free seal. Sold individually.

Key Features

• Schedule 80 PVC construction for heavier wall thickness and higher pressure ratings compared to Schedule 40
• FIP x FIP x FIP configuration provides a same-size threaded branch off the main line
• All-threaded design allows tool-accessible disassembly without cutting pipe
• Compatible with PTFE thread tape for leak-free threaded joints
• 1/2 inch port size on all three connections

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC threaded piping systems using 1/2 inch female iron pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Depressurize and drain the system completely before making any threaded connections or disassembling existing fittings. Apply PTFE thread tape to all male-threaded joints before assembly. Do not over-torque threaded PVC connections, as Schedule 80 PVC can crack under excessive mechanical stress.

Technical Specifications

• Material: PVC Schedule 80
• Connection Type: FIP x FIP x FIP
• Port Size: 1/2 inch
• Fitting Type: Tee
• Weight: 0.165 pounds
• UPC: 00611942076116

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC 08402 1000HA
