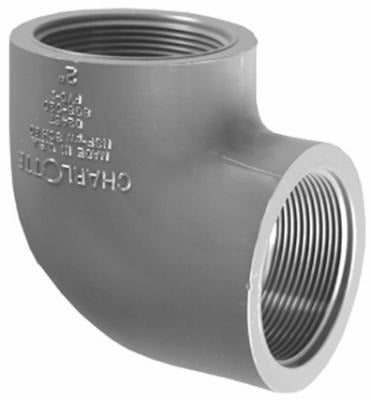

Charlotte Pipe Pvc 08302 1400 Sch 80 90 Deg Elbow 1 in

Product Description

The Charlotte Pipe Foundry Co. PVC 08302 1400 is a Schedule 80 PVC 90-degree elbow with female pipe thread connections on both ends. Built from rigid gray PVC, this elbow is rated for higher pressure applications than Schedule 40 fittings, making it a go-to choice in industrial, commercial, and demanding residential plumbing systems. The female-thread-by-female-thread configuration accepts male-threaded pipe or nipples on both sides. Licensed plumbers and pipefitters install this fitting in pressure piping systems where durability and chemical resistance matter.

This elbow is suited for use in Schedule 80 PVC pressure piping systems handling water, chemicals, and other compatible fluids. It is commonly installed in industrial process lines, irrigation systems, chemical feed lines, and commercial plumbing applications where a 90-degree directional change is required. The gray color and Schedule 80 wall thickness distinguish it from standard Schedule 40 fittings. It is sold in a package quantity of 10 and carries the universal part number 817-010.

Key Features

• Schedule 80 PVC construction provides heavier wall thickness and higher pressure rating than Schedule 40
• 90-degree elbow geometry for right-angle directional changes in piping runs
• Female pipe thread on both ends accepts standard male-threaded pipe and nipples
• Gray PVC color meets standard identification for Schedule 80 fittings
• Resistant to a wide range of chemicals, making it suitable for non-oil-based fluid handling
• Sold in a package of 10 units for job-lot efficiency

Compatibility

Designed as an OEM-style replacement and standard fitting for Schedule 80 PVC threaded piping systems. Universal part number 817-010 applies to this fitting across common industry references.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASTM standards for PVC pressure piping. Shut off and depressurize the piping system completely before removing existing fittings or installing this elbow. Use appropriate pipe thread sealant or PTFE tape rated for PVC and the fluid being handled — do not overtighten threaded connections, as Schedule 80 PVC fittings can crack under excessive torque. Avoid contact with solvents, adhesives, or materials not rated for PVC compatibility.
