Charlotte Pipe PVC 08302 1400 Elbow 1 inches Sch80 90 Degree T x T Elbow

Product Description

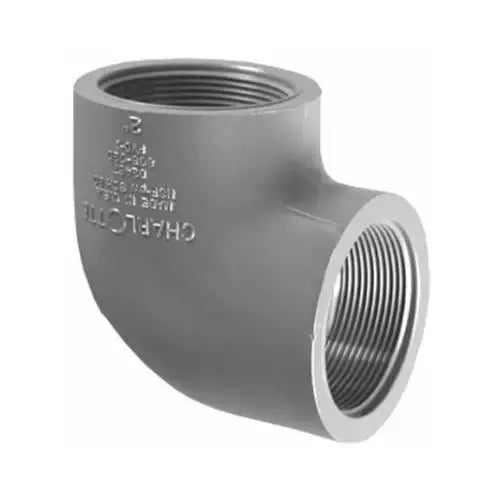

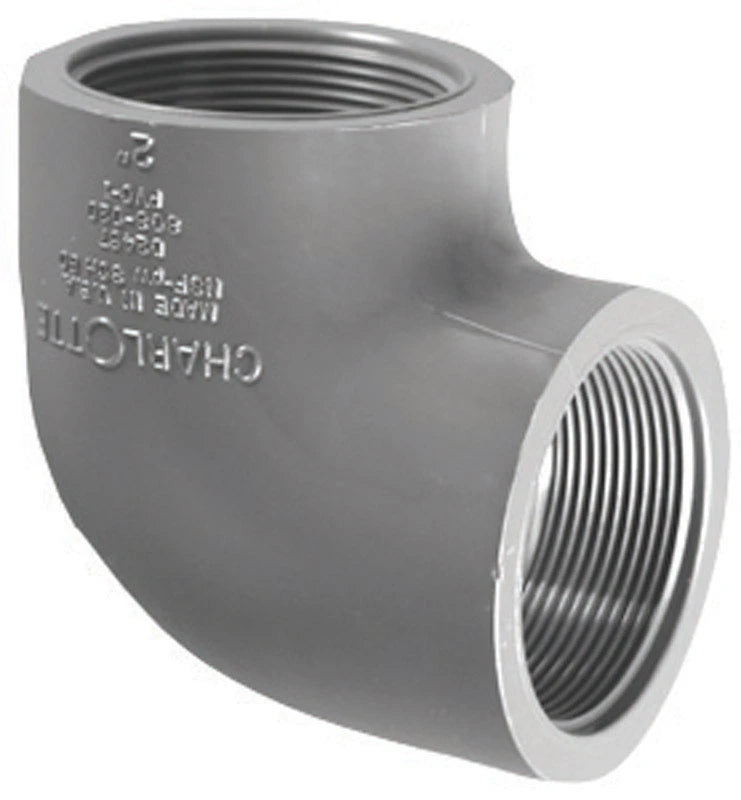

The Charlotte Pipe PVC 08302 1400 is a 1" gray PVC Schedule 80 90-degree elbow with female pipe threads on each end. Designed for pressure applications, it has a thicker wall than Schedule 40 fittings. Suitable for chemical and industrial uses where corrosive fluids are handled. Easy to install and resistant to corrosion and chemical damage.

• Pressure handling elbow
• Thicker and heavier than Schedule 40 fittings
• Resistant to corrosion and chemical damage

Product Highlights

Durable PVC Schedule 80 elbow for pressure applications, chemical and industrial uses. Easy to install and corrosion resistant.

Product Information

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC 08302 1400
• Country of Origin: USA

Technical Specifications

• Brand: Charlotte Pipe
• Material: Plastic
• Connector Type: Elbow
• Thread Size: 1 inch
• Number of Pieces: 1
• Model Number: PVC 08302 1400
• Manufacturer: CHARLOTTE PIPE & FOUNDRY CO.
• Item Type Name: 1"SCH80 90DEG TxT Elbow
• Included Components: pipe-fittings
• Unit Count: 1.0 Count
• Fitting Size 1: 1 in.
• Fitting Size 2: 1 in.
• Fitting Type: Elbow
• Maximum Working Pressure: 2100 psi
• Product Type: Elbow
• Schedule Type: Schedule 80
• Connection Size: 1 in
• Pipe Fitting Diameter: 1 in
• Standards: ASTM D 1784, ASTM D 2467, ASTM D 2464, ASTM F 1970; NSF STANDARD 14, NSF STANDARD 61
• Pipe Fitting Material: PVC
• Fitting Style: 90 Degrees
• Pipe Schedule: 80
• Temp. Range: 32 to 140 F
• Pipe Length: 1"
• Nominal Pipe Size (NPS): 1 in
• Application: Pressure Applications
• Maximum Pressure: 630 psi
• Number in Package: 1 pk
• Average Lead Content: Lead-Free
• End 1 Diameter: 1"
• End 1 Type: FPT
• End 2 Diameter: 1"
• End 2 Type: FPT
• Hazardous Material: No
• IAPMO Certified: Yes
• NSF Listed: Yes
• Schedule Type Number: Schedule 80
• Underground Rated: No
• Velocity: B
• Angle: 90 deg.
• Schedule: 80
• Connection Type 2: FPT
• Connection Type 1: FPT
• Size: 1-In.
• Packaging Type: Bulk
