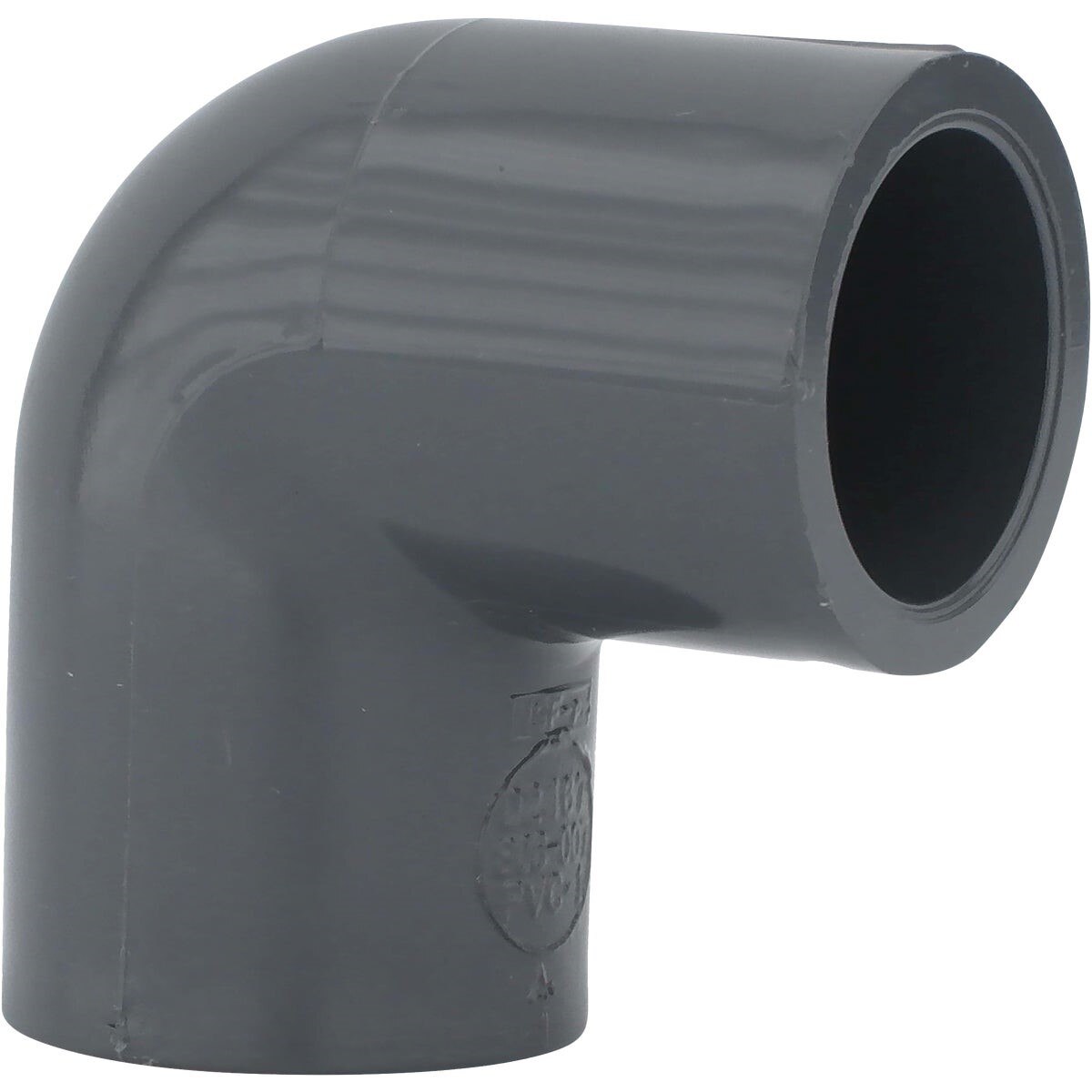

Charlotte Pipe Pvc 08300 1200HA Sch 80 Pvc 90 Deg Elbow 3/4 in

Product Description

The CHARLOTTE PIPE PVC 08300 1200HA is a Schedule 80 PVC 90-degree elbow (also called a quarter bend) designed to change direction in pressure piping systems. With a slip x slip socket configuration, it accepts standard PVC pipe on both ends for solvent-cement joining. Schedule 80 fittings carry a thicker wall than Schedule 40, making them suitable for higher-pressure applications and installations where added mechanical strength is required. This fitting is sized for 3/4-inch pipe and is intended for installation by licensed plumbers and pipefitters working on pressure piping systems.

This elbow is used in residential and light commercial plumbing, irrigation, and industrial pressure piping applications where a 90-degree directional change is needed. Its Schedule 80 pressure rating makes it appropriate for systems that operate at elevated pressures compared to standard drain-waste-vent piping. The slip x slip end configuration allows for straightforward solvent-cement installation in new construction and retrofit work alike.

Key Features

• Schedule 80 PVC construction for higher-pressure and heavy-duty service
• 90-degree elbow geometry for directional changes in pressure piping runs
• Slip x slip socket ends designed for solvent-cement joining
• 3/4-inch pipe size fits standard PVC pressure pipe
• Sold individually, allowing single-unit replacement or small-quantity purchases

Compatibility

Designed as an OEM-style pressure fitting replacement compatible with Schedule 80 PVC piping systems using 3/4-inch slip-connect pipe.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Depressurize and drain the piping system fully before cutting into any existing line. Use a PVC-rated primer and solvent cement approved for Schedule 80 fittings, and allow full cure time before restoring pressure. Do not apply flame or mechanical force to seat the fitting.

Technical Specifications

• Schedule: Schedule 80
• Fitting Type: 90-Degree Elbow (Quarter Bend)
• End Configuration: Slip x Slip
• Pipe Size: 3/4 inch
• Material: PVC
• Weight: 0.14 pounds
• UPC: 00611942053766

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC 08300 1200HA
