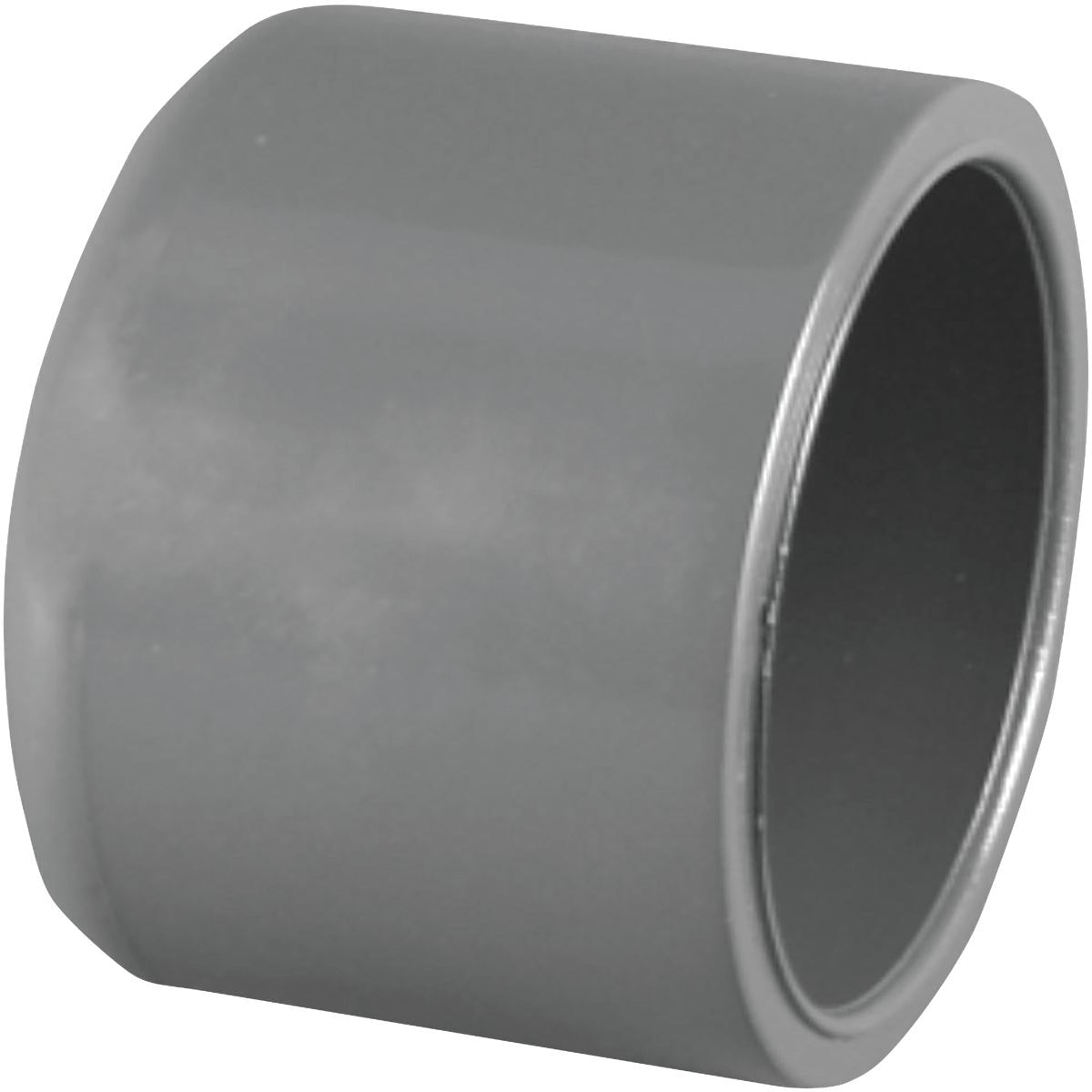

Charlotte Pipe Pvc 08116 1400HA Sch 80 Pvc Slip Cap 1 in

Product Description

The CHARLOTTE PIPE PVC 08116 1400HA is a Schedule 80 PVC slip cap designed to permanently close the end of a PVC pipe. This pressure-rated fitting seats over the outside of a pipe end and provides a secure, solvent-weld seal. It is suited for use in pressurized piping systems where a clean pipe termination is required. Weighing 0.104 pounds, it is a lightweight, single-piece fitting. Licensed plumbers and pipefitters typically install this cap during new construction, system modifications, or when isolating a branch line.

This slip cap is used in residential and commercial plumbing, irrigation, and industrial process piping systems that specify Schedule 80 PVC components. The slip connection style accepts standard PVC pipe and is joined using solvent cement per manufacturer recommendations. It is sold individually and is appropriate wherever a pressure-rated end cap is needed on a 1-inch PVC line.

Key Features

• Schedule 80 pressure rating for demanding service conditions
• Slip connection type accepts standard 1-inch PVC pipe for solvent-weld installation
• Lightweight at 0.104 pounds, minimizing load on piping systems
• Single-piece molded PVC construction with no moving parts
• Sold individually for flexible purchasing

Compatibility

Designed as an OEM-style replacement or new-install fitting compatible with 1-inch Schedule 80 PVC piping systems using slip-style end connections.

Installation Notes

Installation is performed by a licensed plumber or qualified pipefitter. Shut off and depressurize the affected line before cutting or capping any pipe section. Clean and dry the pipe end, apply PVC primer and Schedule 80-rated solvent cement per IPC and local code requirements, and allow full cure time before restoring system pressure. Do not use this fitting on systems that exceed the pressure or temperature ratings of Schedule 80 PVC.

Technical Specifications

• Pipe Size: 1 inch
• Schedule: Schedule 80
• Connection Type: Slip
• Material: PVC
• Weight: 0.104 pounds
• Sold As: Each
• UPC: 00611942053681

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC 08116 1400HA
