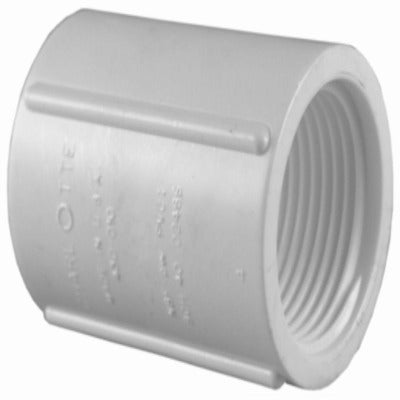

Charlotte Pipe Pvc 02102 0500HA 1/2 Inch Pvc Coupling Fip X Fip 50pk

Product Description

The CHARLOTTE PIPE FOUNDRY CO. PVC 02102 0500HA is a 1/2-inch white PVC coupling with female iron pipe (FIP) threads on both ends. It is designed to join two lengths of pipe of the same diameter in a straight run. The fitting is manufactured from PVC and meets ASTM D 2466 standards for Schedule 40 PVC pressure fittings. Licensed plumbers and irrigation contractors install this coupling in low-pressure water distribution, sprinkler, and irrigation piping systems. Each package contains 50 couplings, making it well suited for contractors working on larger installations.

This coupling is intended for use in residential and light commercial sprinkler and irrigation systems where PVC pressure fittings are specified. The FIP x FIP thread configuration allows connection to male-threaded pipe or fittings on both sides. Its white finish is standard for Schedule 40 PVC applications. The ASTM D 2466 rating confirms it meets dimensional and pressure requirements appropriate for typical irrigation and cold-water service piping.

Key Features

• FIP x FIP thread configuration joins two same-size pipe ends in a straight inline connection
• Meets ASTM D 2466 requirements for Schedule 40 PVC pressure fittings
• White PVC construction suitable for above-ground and in-trench irrigation piping
• 1/2-inch nominal pipe size for standard small-diameter distribution lines
• Sold in a package of 50 units for contractor-volume installations

Compatibility

Designed as an OEM-style replacement and standard-use fitting compatible with 1/2-inch Schedule 40 PVC pipe systems used in sprinkler and irrigation applications meeting ASTM D 2466 requirements.

Installation Notes

Installation should be performed by a licensed plumber or qualified irrigation contractor in accordance with applicable local plumbing and irrigation codes. Shut off the water supply and relieve system pressure before cutting into any existing line. Apply PVC primer and solvent cement rated for Schedule 40 fittings when connecting to plain-end pipe; use thread sealant tape or compound rated for plastic threads when making threaded connections. Do not overtighten threaded connections, as PVC threads can crack under excessive torque.
