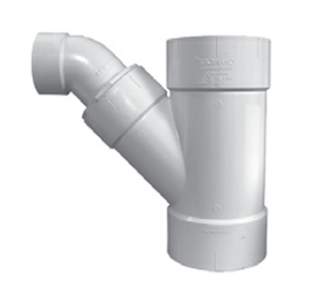

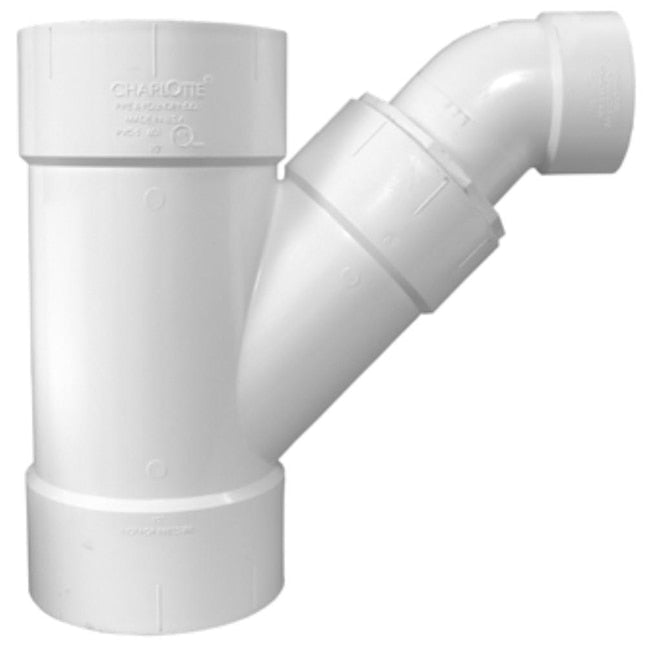

Charlotte Pipe PVC 00504 2100 DWV Combination Wye and 45° Reducing Elbow 12 inches x 12 inches x 4 inches

Product Description

The Charlotte Pipe PVC 00504 2100 is a 12" x 12" x 4" DWV combination wye and 45° reducing elbow. These PVC fittings are for drain, waste, and vent purposes in gravity-fed waste elimination systems. They are for non-pressure systems where temperatures will not exceed 140° F. PVC is lightweight and easy to install.

• DWV Combination Wye and 45° Reducing Elbow
• Two Piece All Hub
• Conforms to meet standards: ASTM D 1784, ASTM D 2665, ASTM D 3311 and NSF 14

Product Highlights

This combination wye fitting connects a plumbing fixture to a drain line in sanitary drain, waste, and vent (DWV), sewer, and storm drainage applications.

Product Information

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC 00504 2100
• Country of Origin: USA

Technical Specifications

• Sub Type: Reducing wye
• CA Residents: Prop 65 Warning(s): Yes
• Common Use: Non-potable water
• Diameter (End 3): 4-in
• LA Pattern: No
• Code Approvals: ASTM D 1784, ASTM D 2665, ASM D 3311. NSF STANDARD 14
• Safety Listing: NSF safety listing
• Package Quantity: 1
• Connection Type (End 1): Hub
• Minimum Working Temperature (Fahrenheit): 32
• Diameter (End 1): 12-in
• For Use with RVs: No
• Pipe Schedule: Schedule 40
• Connection Type (End 3): Hub
• Type: Combination wye
• Diameter (End 2): 12-in
• Maximum Working Temperature (Fahrenheit): 140
• Plastic Nut Included: No
• Connection Type (End 2): Hub
• Fitting 1 size: 12"
• Fitting or Connector Type: Wye
• Schedule Type: Schedule 40
• Connectivity: Solvent Cemented
• Pack Size: 1
• DWV: DWV
• Application: Non-Potable Water
