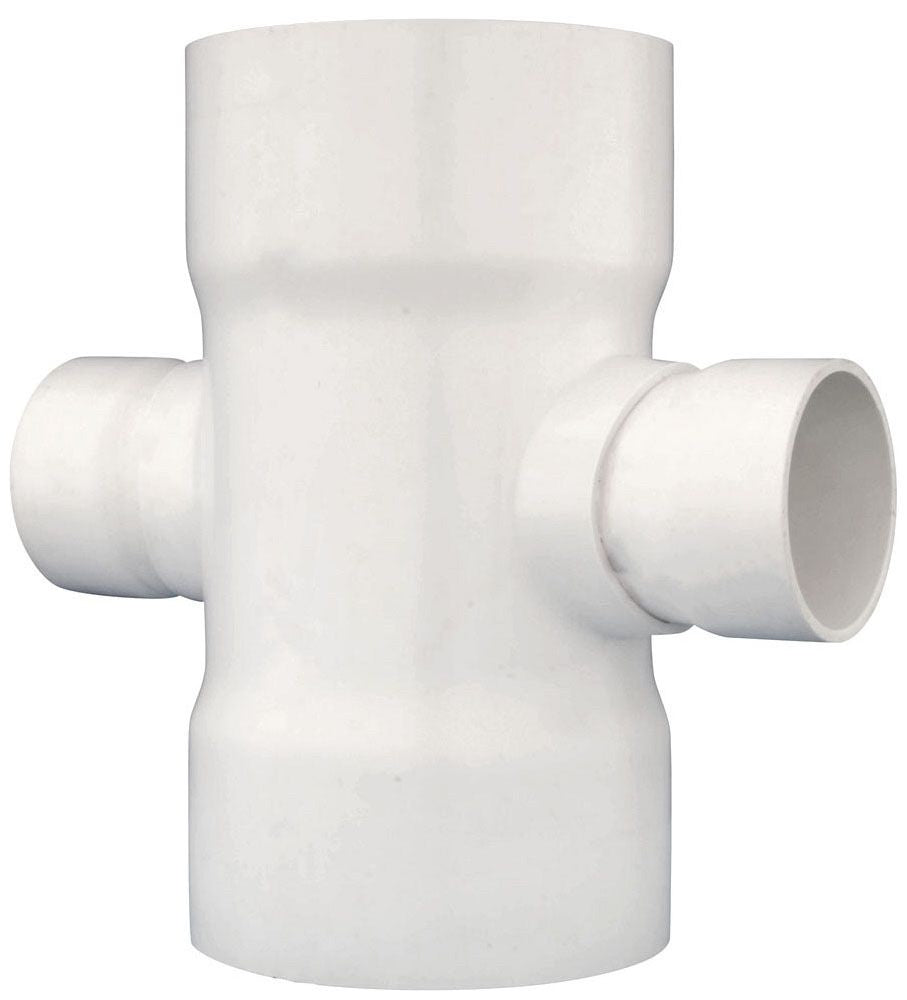

Charlotte Pipe Pvc 00410 1650 Pvc Tee Cross 8x8x4x4

Product Description

The CHARLOTTE PIPE PVC 00410 1650 is a PVC tee cross fitting used in drain, waste, and vent (DWV) piping systems. This cross fitting provides four connection points, with 8-inch main run openings and 4-inch branch openings, allowing a single fitting to serve both a straight run and two lateral branches simultaneously. It is manufactured from PVC, making it lightweight, corrosion-resistant, and suitable for non-pressure DWV applications. Licensed plumbers and pipefitters are the primary installers of this fitting in residential and commercial construction.

This tee cross is designed for use in DWV systems where a single fitting must accommodate both a through-run and dual branch connections. Its 8-inch by 8-inch by 4-inch by 4-inch configuration makes it well suited for larger drain stack assemblies or horizontal waste line junctions that require multiple branch tie-ins at the same location. It is appropriate for new construction and renovation projects wherever PVC DWV piping is specified.

Key Features

• Four-port cross configuration with 8-inch main run and 4-inch branch openings
• PVC construction provides corrosion resistance and long service life in DWV applications
• Consolidates a through-run and two branch connections into a single fitting, reducing joint count
• Sized for larger-diameter drain and waste lines common in commercial or multi-unit residential systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for PVC DWV piping systems using 8-inch main run pipe and 4-inch branch pipe.

Installation Notes

Installation of this fitting must be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and ensure the line is fully drained before cutting into any existing piping. Use the appropriate PVC primer and solvent cement rated for the pipe schedule and application. Support the fitting and connected piping per code-required hanger spacing to prevent stress on cemented joints.

Technical Specifications

• Material: PVC
• Fitting Type: Tee Cross
• Main Run Size: 8 inches x 8 inches
• Branch Size: 4 inches x 4 inches
• Application: DWV (Drain, Waste, Vent)
• Vendor Product Number: 410
• UPC: 611942122653

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: PVC 00410 1650
