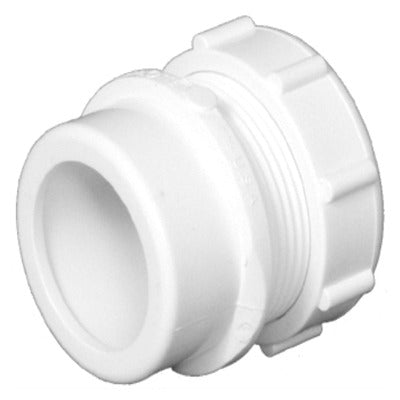

Charlotte Pipe Pvc 00103R 0600HA Dwv Male Trap Adapter Sch 40

Product Description

The CHARLOTTE PIPE FOUNDRY CO. PVC 00103R 0600HA is a Schedule 40 PVC DWV male trap adapter designed to connect drain trap assemblies to branch drain piping in residential and commercial plumbing systems. It features a spigot inlet that glues into a standard DWV hub and a slip joint nut outlet that accepts a 1-1/4 inch or 1-1/2 inch trap arm, making it a dual-function fitting for common sink and lavatory trap connections. This fitting is sized at 1-1/2 inches x 1-1/4 inches or 1-1/2 inches x 1-1/2 inches and is manufactured to Schedule 40 dimensional standards. Licensed plumbers and qualified pipe fitters install this adapter during rough-in and finish plumbing work on drain, waste, and vent systems.

This trap adapter sees common use in residential kitchens, bathrooms, and lavatories where a P-trap must connect to a glue-in DWV branch. The spigot end cements into a 1-1/2 inch DWV socket fitting on the drain branch, while the threaded slip joint nut provides a hand-tightenable, serviceable connection to the trap arm. The dual-size compatibility at the slip joint outlet accommodates both 1-1/4 inch and 1-1/2 inch trap arms, reducing the need for separate reducers in typical lavatory and kitchen sink installations. This fitting ships in a package quantity of 50 units, making it well suited for supply-house stocking or multi-unit job buys.

Key Features

• Schedule 40 PVC construction meets standard DWV dimensional requirements
• Spigot inlet solvent-cements into a standard 1-1/2 inch DWV hub fitting
• Slip joint nut outlet accepts 1-1/4 inch or 1-1/2 inch trap arms without additional reducers
• Male trap adapter configuration keeps the trap arm serviceable without cutting pipe
• Packaged 50 units per carton for jobsite and supply-house convenience

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 40 PVC DWV systems using standard spigot-hub solvent-weld connections at 1-1/2 inch branch drain outlets.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code and local authority having jurisdiction requirements. Shut off the water supply and clear the drain line before beginning work. The spigot end requires standard PVC solvent cement and primer applied per the cement manufacturer instructions and ASTM D2564 procedures. Do not overtighten the slip joint nut by mechanical means — hand-tight plus a quarter turn is typical practice to avoid cracking the nut flange.
