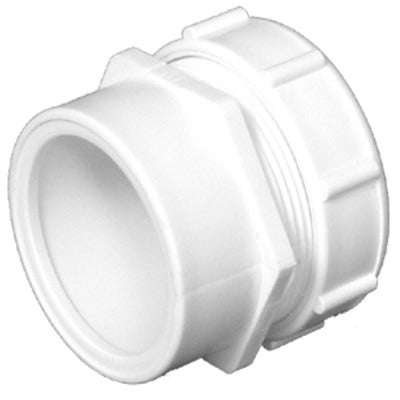

Charlotte Pipe Pvc 00103P 0800HA Dwv Male Trap Adapter

Product Description

The Charlotte Pipe Foundry Co. PVC 00103P 0800HA is a PVC DWV male trap adapter designed to connect tubular trap assemblies to a standard DWV fitting hub at the wall or floor. The fitting accepts a solvent weld on the spigot end and a slip-joint connection on the other end, giving the installer a secure, leak-resistant transition between rigid PVC drain pipe and the flexible tubular trap arm. At 1-1/2 inches on both ends, it covers the most common residential sink and lavatory drain size. Licensed plumbers and qualified tradespeople handle this type of drain fitting as part of routine rough-in and finish plumbing work.

This adapter is used in residential and light commercial drain-waste-vent systems wherever a tubular P-trap must connect to a PVC DWV hub at the wall or floor. Typical applications include kitchen sink drains, lavatory drains, and utility sink installations. The fitting solvent welds into a 1-1/2 inches DWV fitting hub on the hub side, while the slip-joint male thread on the outlet end accepts standard tubular trap nuts and washers. The white color finish is consistent with standard residential PVC DWV trim-out work.

Key Features

• S x SJ end configuration: solvent-weld spigot inlet, slip-joint male outlet
• Solvent welds into a standard 1-1/2 inches PVC DWV fitting hub
• Accepts tubular trap assemblies at wall or floor termination points
• White PVC construction compatible with standard DWV solvent cement
• Sold in a package quantity of 50 units, suitable for contractor stock

Compatibility

Designed as an OEM-style replacement and standard fitting for residential and light commercial PVC DWV drain systems requiring a 1-1/2 inches hub-to-tubular-trap transition at the wall or floor.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local amendments. Before installation, shut off the water supply and ensure the drain line is clear and dry. Clean and prime both mating surfaces before applying PVC solvent cement to the solvent-weld end; allow full cure time before restoring flow. Do not overtighten the slip-joint nut on the tubular side, as excessive force can crack the fitting or damage the washer seat.
