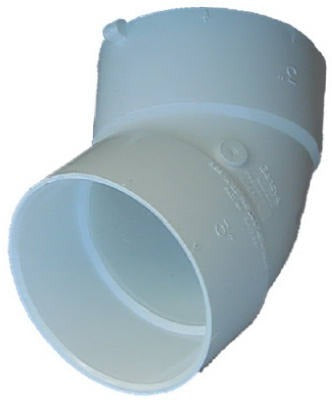

Charlotte Pipe Foundry Co. Pvc 01321 0600HA Dwv 45 Degree Elbow

Product Description

The Charlotte Pipe Foundry Co. PVC 01321 0600HA is a 3-inch Schedule 30 PVC sanitary elbow designed for drain, waste, and vent (DWV) piping systems. The 45-degree sweep changes flow direction in vertical and horizontal drain lines while maintaining proper drainage slope. Made from PVC, this fitting is lightweight and resistant to common drain-line chemicals. Licensed plumbers install this fitting in residential and light commercial DWV rough-in work, joining it to Schedule 30 or compatible DWV pipe using solvent cement.

This elbow is used in indoor drain, waste, and vent piping where a 45-degree change of direction is required. It is suited for residential bathroom, kitchen, and utility drain lines as well as light commercial DWV applications. The Schedule 30 wall thickness meets standard DWV service requirements. The package contains 10 fittings per unit, making it practical for rough-in jobs that require multiple direction changes in a single drain run.

Key Features

• 45-degree sweep angle for gradual directional change in drain and waste lines
• 3-inch nominal size for standard residential and light commercial DWV applications
• Schedule 30 PVC construction meets DWV service wall-thickness requirements
• Solvent-weld socket ends for fast, reliable field joints
• Packaged 10 per unit for efficient multi-fitting installations

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 3-inch Schedule 30 PVC DWV piping systems in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water supply and ensure the drain line is clear and dry before cutting into existing piping. Clean and dry all mating surfaces before applying solvent cement, and allow full cure time before restoring flow. Do not use this fitting on pressurized supply lines.
