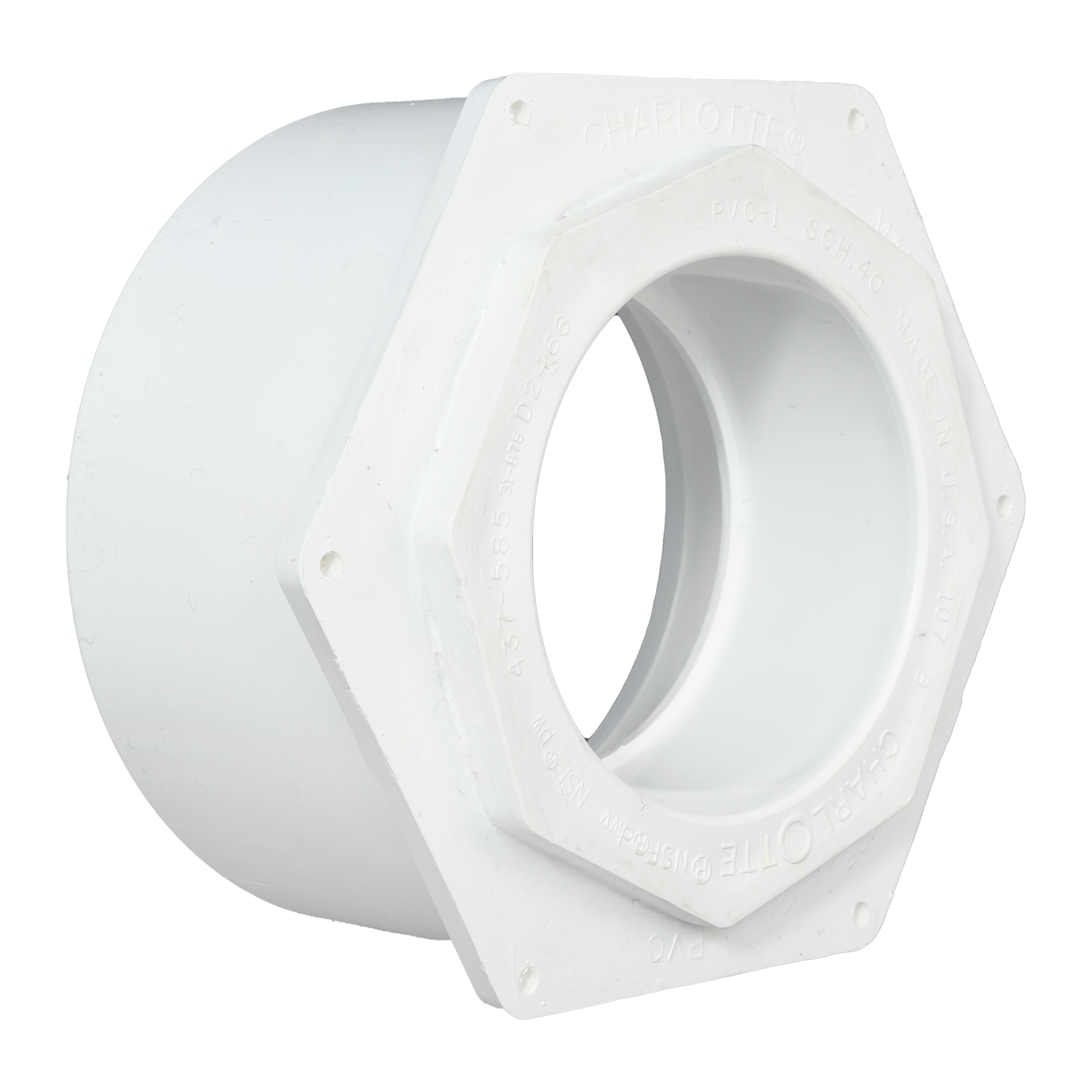

Charlotte Pipe D1210-8 Pvc Dwv Flush Bushing 10x8 in

Product Description

The CHARLOTTE PIPE D1210-8 is a PVC flush bushing designed for drain, waste, and vent (DWV) applications in non-pressure, gravity-fed waste elimination systems. This spigot-by-hub fitting reduces a 10-inch hub to an 8-inch spigot, allowing field technicians to transition between pipe sizes without adding unnecessary length to the assembly. Maximum rated service temperature is 140 degrees F. PVC construction keeps the fitting lightweight and straightforward to handle on the job, making it a practical choice for licensed plumbers working in both rough-in and finish drain applications.

This fitting is intended for residential and commercial DWV systems where gravity-fed drainage is required. Common install scenarios include main drain line reductions, branch connections, and stack transitions where a flush profile is needed to minimize obstruction inside the pipe bore. The fitting accepts solvent cement joining, making it compatible with standard PVC DWV installation practice. It is not rated for pressure service.

Key Features

• Flush bushing profile reduces pipe OD without adding significant stack length
• Spigot-by-hub configuration: 10-inch hub receives 8-inch spigot outlet
• Rated for non-pressure, gravity-fed DWV service only
• Maximum service temperature of 140 degrees F
• Compatible with solvent cement, threading, flanging, and roll-grooved joining methods
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement and new-construction fitting for PVC DWV non-pressure piping systems requiring a 10-inch-to-8-inch spigot-by-hub reduction.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and verify the system is depressurized before cutting into any existing drain line. Solvent cement joining requires proper surface preparation including cleaning and priming per the cement manufacturer and code requirements. Do not use this fitting in any pressurized or above-140-degrees-F service application.

Technical Specifications

• Material: PVC
• Fitting Type: Flush Bushing
• Connection Type: Spigot x Hub
• Inlet Size: 10 inches
• Outlet Size: 8 inches
• System Type: DWV (Drain, Waste, Vent) Non-Pressure
• Maximum Temperature: 140 degrees F
• Country of Origin: USA
• UPC: 611942101801

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: D1210-8
