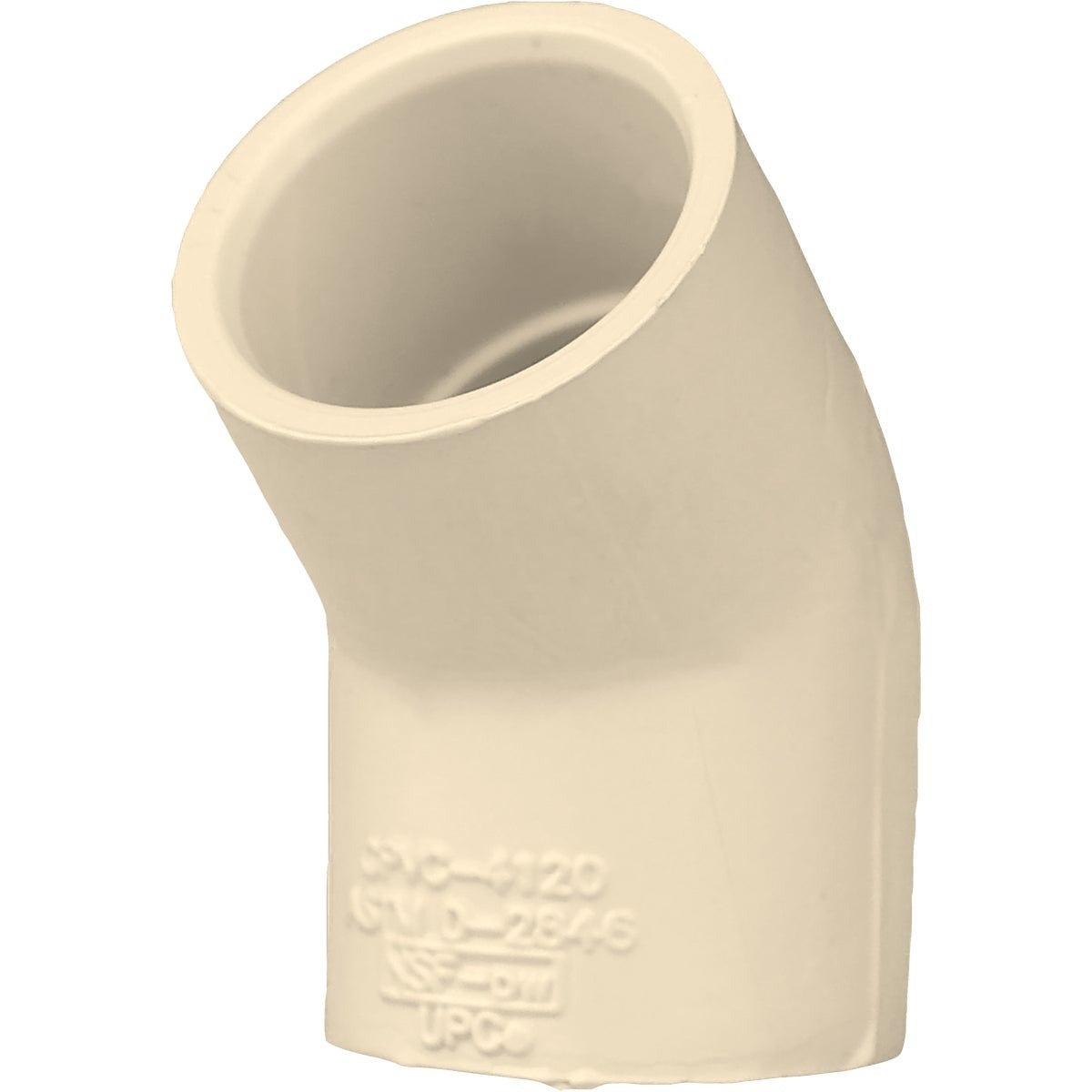

Charlotte Pipe Cts 02309 0800HA Cpvc 45 Degree Elbow

Product Description

The CHARLOTTE PIPE CTS 02309 0800HA is a 3/4 inch CPVC 45-degree elbow designed for solvent-welded piping systems. It accepts standard CTS outside-diameter pipe on both ends using a slip x slip configuration, allowing a clean directional change without threaded fittings. CPVC construction provides resistance to elevated temperatures and chlorinated water, making it well suited for hot and cold potable water distribution. A licensed plumber or qualified pipefitter installs this fitting as part of a pressure-rated copper tube size system.

This elbow is used in residential and light commercial plumbing applications where a 45-degree direction change is required in a CPVC supply line. Typical install scenarios include domestic water distribution runs in new construction, remodel work, and repair projects. The fitting is rated for both hot and cold potable water service, making it appropriate wherever CPVC supply piping is the specified or existing material.

Key Features

• 45-degree angle provides a gradual directional change to reduce flow restriction compared to a 90-degree fitting
• Slip x slip ends accept CPVC CTS pipe for solvent cement joining on both sides
• CPVC material handles elevated water temperatures suitable for hot water supply lines
• Suitable for hot and cold potable water systems
• Lightweight construction at 0.4 pounds per unit

Compatibility

Designed as an OEM-style replacement and standard fitting for 3/4 inch CPVC CTS solvent-weld potable water piping systems.

Installation Notes

Installation is performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off the water supply and depressurize the line before cutting or joining any fittings. Use CPVC-rated solvent cement and primer as specified by the cement manufacturer and local code. Do not use PVC solvent cement in place of CPVC-rated products, as material compatibility differs.
