Charlotte Pipe And Foundry ABS009100600 Swivel Tray Plug Adapter 1-1/2 in. Hub X 1-1/2 in. D FPT

Product Description

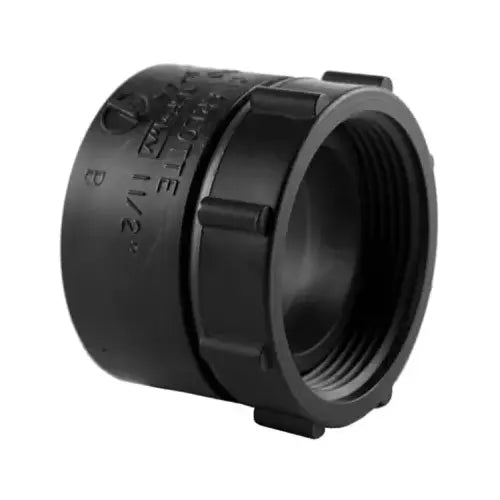

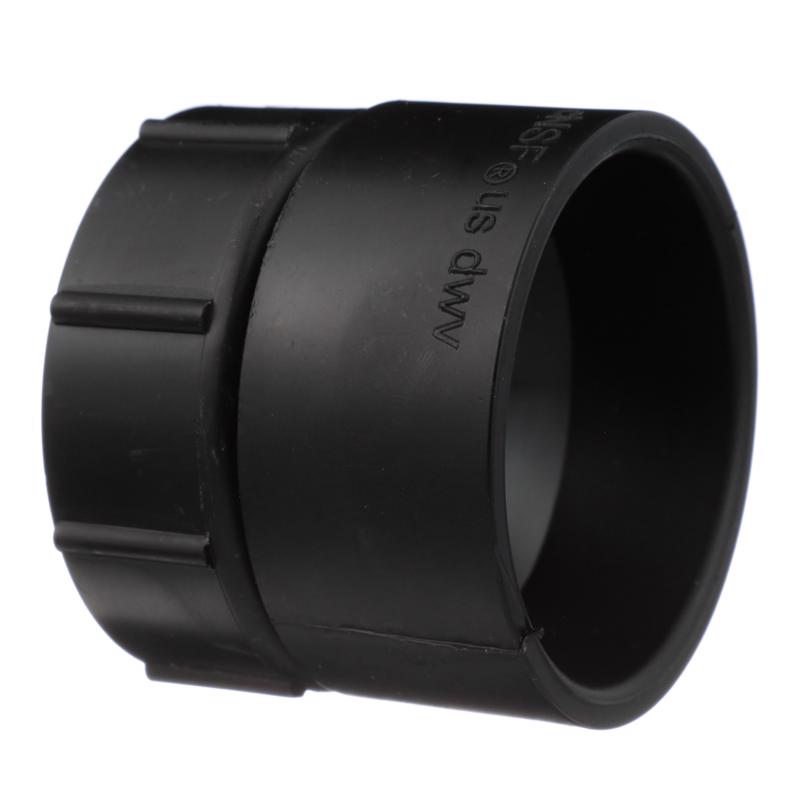

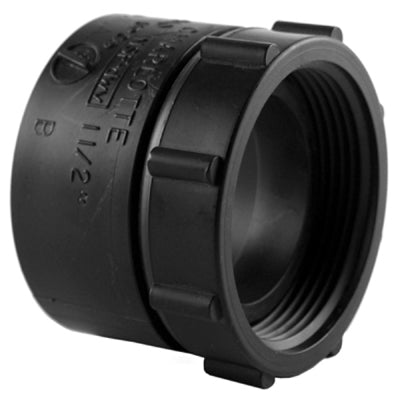

The Charlotte Pipe And Foundry ABS Swivel Tray Plug Adapter, MPN ABS009100600, is intended for drain, waste, and vent applications. Constructed from durable ABS material, this adapter is designed for use in gravity-fed waste systems that do not require pressure. It features two connections: a hub on one end and a female pipe thread (FPT) on the other, both measuring 1-1/2 inches in diameter.

• Compatible with gravity-fed waste systems.
• Temperature rating of up to 140 degrees Fahrenheit.
• Includes 1-1/2 inch hub and FPT connections.

Product Highlights

This ABS swivel tray plug adapter is built for reliable performance in DWV applications, making it suitable for various plumbing setups.

Product Information

Standard Information

• Brand: Charlotte Pipe
• Manufacturer Part No: ABS009100600

Technical Specifications

• Product Type: Swivel Tray Plug Adapter
• Material: ABS
• Color: Black
• End 1 Type: Hub
• End 2 Type: FPT
• End 1 Diameter: 1-1/2 inches
• End 2 Diameter: 1-1/2 inches
• Maximum Temperature: 140 degrees Fahrenheit
• Application: DWV
• Schedule Number: Schedule 40
• Pipe Fitting Type: Adapter
• Compatible Pipe Material: ABS
• Product Height: 4 inches
• Product Length: 6.91 inches
• Product Width: 4.75 inches
• Product Weight: 0.74 lb
