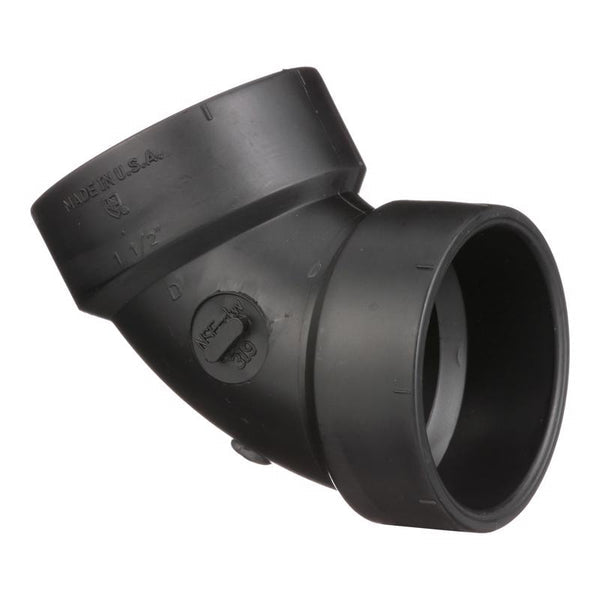

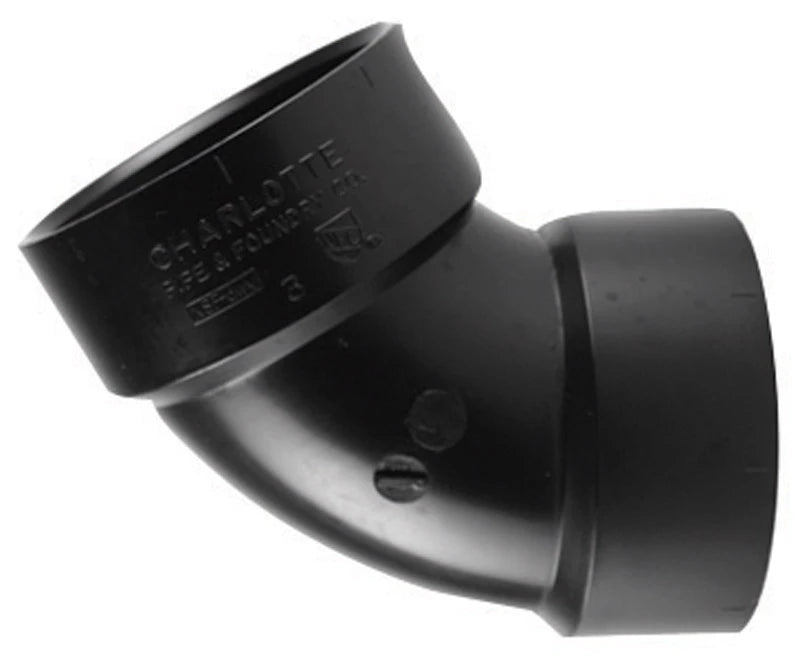

Charlotte Pipe And Foundry ABS003190600 60 Degree Elbow 1-1/2 In. Hub x Hub

Product Description

The Charlotte Pipe and Foundry ABS 60 Degree Elbow (MPN: ABS003190600) is suitable for drain, waste, and vent applications in gravity-fed systems. Made from durable ABS plastic, this fitting enables a 60-degree turn in direction within non-pressure piping configurations.

• Constructed from ABS plastic.
• Features hub connections on both ends.
• Designed for temperatures up to 140°F.

Product Highlights

This fitting is ideal for installation in DWV systems, allowing quick installation without specialized cutting tools or primer.

Product Information

Standard Information

• Brand Name: Charlotte Pipe
• MPN: ABS003190600

Technical Specifications

• Material: ABS
• End 1 Diameter: 1-1/2 inches
• End 1 Type: Hub
• End 2 Diameter: 1-1/2 inches
• End 2 Type: Hub
• Maximum Temperature: 140°F
• Angle: 60 degrees
• Application: ABS/DWV piping systems
• Use: Non-pressure drain, waste, and vent installations
• Connection Type 2: Hub
• Connection Type 1: Hub
• Fitting Size 1: 1-1/2 inches
• Fitting Size 2: 1-1/2 inches
• Each Weight: 0.120 lb
• Schedule: 40
• DWV: DWV
