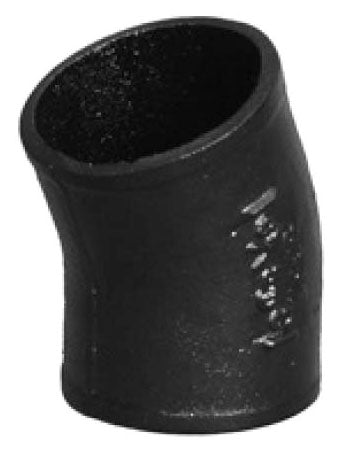

Charlotte Pipe and Foundry 00188 NH-14 8 NO-HUB CI 1/16 Bend

Product Description

Charlotte Pipe and Foundry 00188 is a bend fitting made from cast iron. It features a 1/16 bend with an angle of twenty-two and one-half degrees. The fitting is designed for end connections that are no hub by no hub. This component is suitable for various applications such as sanitary, DWV, sewer, and storm drainage systems.

• Bend fitting type suitable for multiple applications
• Constructed from durable cast iron
• Complies with NSF and ISO 9001 standards

Product Highlights

This fitting is known for its high crush strength and sound deadening performance. It is made in the USA and has been used in non-pressure applications for many years.

Product Information

Standard Information

• Manufacturer: Charlotte Pipe and Foundry
• UPC: 61194200188

Technical Specifications

• Type: 1/16 Bend
• Angle: 22-1/2 Degree
• Material: Cast Iron
• Material Specification: ASTM A888/CISPI 301
• End Connection: No Hub x No Hub
• Size A: 8 Inch
• Size B: 8 Inch
• Temperature Rating: 212 Deg F
• Application: Sanitary, DWV, Sewer, Storm Drainage
• Applicable Standard: NSF, ISO 9001
