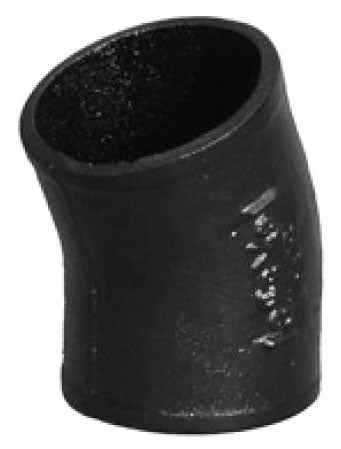

Charlotte Pipe and Foundry 00185 - NHS4L116 4 NO-HUB CI 1/16 BEND

Product Description

The Charlotte Pipe and Foundry 00185 is a no-hub cast iron fitting designed for various plumbing applications. This fitting features a 22-1/2 degree angle with a 1/16 bend. The size of both ends is four inches, equipped for no-hub connections. It is suitable for sanitary, drainage, and sewer applications.

• Type: 1/16 Bend
• Material: Cast Iron
• Temperature Rating: 212 degrees Fahrenheit

Product Highlights

This product is ideal for waste and vent systems. It is manufactured to meet NSF and ISO 9001 standards, ensuring high quality and reliability.

Product Information

Standard Information

• Manufacturer: Charlotte Pipe and Foundry
• UPC: 61194200185

Technical Specifications

• Angle: 22-1/2 Degree
• Applicable Standard: NSF, ISO 9001
• Application: Sanitary, DWV, Sewer, Storm Drainage
• End Connection: No Hub x No Hub
• Finish: Gray
• Material: Cast Iron
• Material Specification: ASTM A888/CISPI 301
• Product Type: Pipes/Valves/Fittings
• Size A: 4 Inch
• Size B: 4 Inch
• Temperature Rating: 212 Deg F
• Series/Model: NH-14
