Charlotte Pipe Abs 00324 1000HA 3 Inch Abs Dwv 22.5 Degree Elbow

Product Description

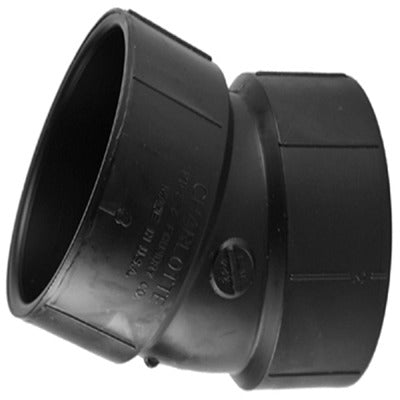

The Charlotte Pipe Foundry ABS 00324 1000HA is a 3-inch ABS DWV 22-1/2 degree elbow fitting with a hub-by-hub (HxH) connection designed for non-pressure drain, waste, and vent piping systems. Molded from black ABS material, this elbow redirects flow at a 22-1/2 degree angle, making it useful when a gentle directional change is needed within a waste line. It is sized at 3 inches and packaged in quantities of 20 units. Licensed plumbers and pipefitters install this fitting in residential and light commercial DWV rough-in work where code-compliant sweep angles are required.

This fitting is intended for non-pressure drain, waste, and vent applications only. It is not rated for pressurized supply lines. Typical installation scenarios include horizontal waste line offsets, vent riser transitions, and drain line routing around framing obstructions in residential and commercial construction. The 22-1/2 degree sweep provides a shallower directional change compared to 45 or 90 degree fittings, supporting smooth drainage flow through the system. Note that this fitting has low chemical resistance and should not be used in environments with aggressive solvents or chemical drain service.

Key Features

• 22-1/2 degree sweep angle for gentle directional changes in waste lines
• Hub x Hub (HxH) connection on both ends for solvent-cement joining
• 3-inch nominal pipe size for standard DWV rough-in
• Black ABS material construction
• Non-pressure rated — suitable for drain, waste, and vent service only
• Sold in a package quantity of 20 units

Compatibility

Designed as an OEM-style fitting for use with 3-inch ABS DWV piping systems in non-pressure drain, waste, and vent installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off water service and ensure the waste line is clear and dry before cutting into an existing system. Join hub connections using ABS solvent cement rated for DWV service, following the cement manufacturer's cure time requirements before restoring flow. Do not use this fitting on pressurized supply lines or in applications involving high-concentration chemical waste.
