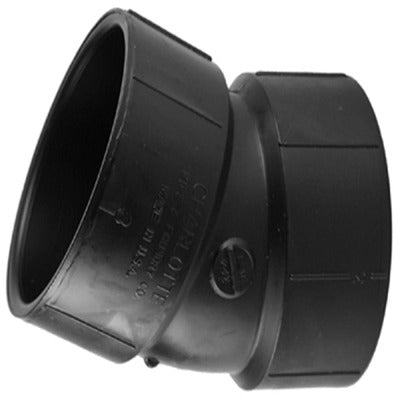

Charlotte Pipe Abs 00324 0800HA 2 in Dwv 22-1/2 Deg Elbow

Product Description

The Charlotte Pipe Foundry ABS 00324 0800HA is a 2-inch ABS DWV 22-1/2 degree elbow configured with hub-by-hub ends. This fitting is designed to make a gradual 22-1/2-degree change in direction within a non-pressure drain, waste, and vent piping system. Molded from ABS (Acrylonitrile Butadiene Styrene) thermoplastic, the fitting is black in color and suited for residential and light commercial DWV applications. Licensed plumbers and pipefitters install this elbow when routing drain lines around minor obstructions or through framed walls and floor assemblies where a slight offset in flow direction is required.

This elbow is used in above-grade DWV systems where ABS pipe is the specified material. The 22-1/2-degree sweep is a standard offset angle used in residential drain and vent stacks, horizontal branch lines, and under-slab rough-in work. It is not rated for pressurized service and should only be installed in gravity-flow waste and vent configurations. The hub-by-hub configuration accepts standard 2-inch ABS pipe on both ends, solvent-welded per manufacturer and code requirements.

Key Features

• 22-1/2-degree angle provides a gradual directional offset in DWV drain and vent lines
• Hub x Hub end configuration accepts standard 2-inch ABS pipe on both ends for solvent-weld installation
• ABS thermoplastic construction — black material, lightweight, and compatible with ABS solvent cement
• Rated for non-pressure drain, waste, and vent service only — not for supply or pressurized lines
• Sold in a package quantity of 25 units, suited for contractor and rough-in use

Compatibility

Designed as an OEM-style DWV fitting for non-pressure drain, waste, and vent systems using 2-inch ABS pipe, installed per applicable plumbing codes.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) or applicable local code. Shut off water supply and ensure the line is depressurized and drained before cutting into an existing drain line. Clean pipe ends and fitting hubs thoroughly before applying ABS solvent cement; allow adequate cure time before restoring flow. This fitting is not approved for pressurized or chemical-resistance applications.
