Charlotte Pipe Abs 00324 0600HA 1-1/2 in 22.5 Deg Dwv Elbow

Product Description

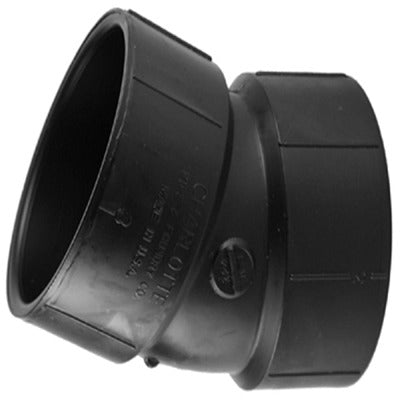

The CHARLOTTE PIPE FOUNDRY CO. ABS 00324 0600HA is a 1-1/2 inch ABS DWV hub x hub elbow designed to make a 22-1/2 degree directional change in a non-pressure drain, waste, and vent piping system. Molded from black ABS material, this fitting connects two hub-end pipe segments and is intended strictly for gravity-flow drainage applications. It is a standard component in residential and light commercial DWV rough-in work, installed by licensed plumbers during new construction or remodel. The fitting ships in a package quantity of 50 units, making it practical for multi-fixture rough-ins or larger projects requiring consistent offsets throughout a waste line layout.

This elbow is used wherever a shallow-angle directional change is needed in a drain or vent run — particularly in horizontal waste lines where a gradual offset is required rather than a sharper 45 or 90 degree turn. The 22-1/2 degree sweep helps maintain adequate slope and flow velocity in drain lines. Typical applications include under-slab drain routing, in-wall vent offsets, and horizontal branch drain alignment in residential single-family and multi-family construction as well as light commercial plumbing installations.

Key Features

• 22-1/2 degree sweep angle for gradual directional changes in waste and vent lines
• Hub x hub end connections accept standard 1-1/2 inch ABS DWV pipe with solvent cement
• Black ABS construction suited for non-pressure drain, waste, and vent service
• Low chemical resistance rating — verify fluid compatibility before installation in specialty drain applications
• Available in a 50-unit package quantity for production plumbing work

Compatibility

Designed as an OEM-style DWV fitting for use with 1-1/2 inch ABS drain, waste, and vent piping systems in non-pressure applications. Compatible with standard ABS DWV pipe joined using ABS solvent cement per applicable plumbing code.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code or locally adopted equivalent. Shut off water supply and ensure the drain line is clear and dry before cutting into an existing system. Use ABS solvent cement rated for ABS-to-ABS joints and allow full cure time before restoring flow. This fitting is not rated for pressure service and must not be used in supply or pressurized piping applications.
