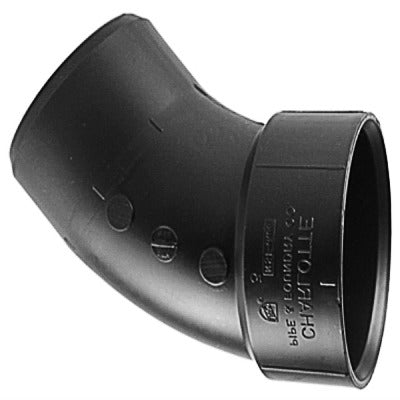

Charlotte Pipe Abs 00323 0600HA 1-1/2 in Abs Dwv 45 Degree Street Ell

Product Description

The CHARLOTTE PIPE FOUNDRY CO. ABS 00323 0600HA is a 1-1/2 inch ABS DWV 45 Degree Street Elbow configured with a spigot inlet and hub outlet. This fitting is designed for non-pressure drain, waste, and vent (DWV) piping systems and allows a 45-degree directional change off an existing fitting without adding an extra coupling. Constructed from black ABS material, it is suited for residential and light commercial rough-in applications. Licensed plumbers and drain installers specify this style of street ell when space is limited and a secondary fitting socket would create unnecessary stack depth or alignment issues.

This fitting is used in non-pressure DWV installations including sink drains, lavatory drains, tub and shower waste lines, and vent stack branches. The spigot end inserts directly into the hub of an adjacent ABS fitting, making it a compact, one-piece directional transition. It is appropriate for horizontal drain runs and vertical vent stack offsets in residential new construction and remodel work where ABS piping is the system material of record.

Key Features

• 45-degree street configuration — spigot x hub — for direct insertion into an adjacent fitting hub
• ABS material, black, rated for non-pressure DWV service
• 1-1/2 inch nominal size for standard lavatory, sink, and drain branch applications
• Low chemical resistance rating — verify fluid compatibility before installing in specialty waste systems
• Sold in a package quantity of 20 units per case

Compatibility

Designed as an OEM-style DWV fitting for use with 1-1/2 inch ABS drain, waste, and vent piping systems in non-pressure applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and local amendments governing ABS DWV systems. Solvent-cement all joints using ABS-rated cement; do not use PVC cement on ABS fittings. Ensure the mating pipe and spigot end are clean, dry, and deburred before applying solvent. Support piping at code-required intervals and confirm all DWV grades and vent connections meet inspection requirements before closing the wall or floor.
