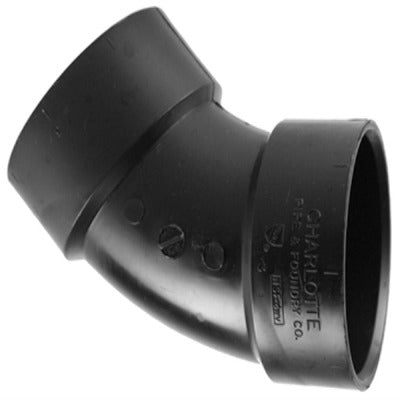

Charlotte Pipe Abs 00321 1000HA Abs Dwv 45-deg Elbow 3 in

Product Description

The CHARLOTTE PIPE FOUNDRY CO. ABS 00321 1000HA is a 3-inch ABS DWV 45-degree 1/8 bend elbow with a hub x hub connection on both ends. It is used to redirect flow at a 45-degree angle within a drain, waste, and vent (DWV) piping system. Made from black ABS material, this fitting is intended for non-pressure applications only. Licensed plumbers install this type of fitting in residential and light commercial drainage systems where a gradual directional change in the waste line is needed.

This elbow fits into non-pressure drain, waste, and vent systems in residential and light commercial construction. The hub x hub configuration accepts pipe on both ends, allowing a clean transition in direction within a horizontal or vertical waste run. It is commonly installed beneath slab, in walls, or in crawl spaces as part of a complete ABS DWV rough-in. The fitting ships in a package quantity of 20 units, making it practical for larger rough-in jobs requiring multiple fittings of the same configuration.

Key Features

• 45-degree bend angle for smooth directional transitions in drain and waste lines
• Hub x hub ends accept 3-inch ABS pipe on both sides
• Rated for non-pressure DWV applications only — drain, waste, and vent systems
• Black ABS construction offers lightweight handling and straightforward solvent-cement joining
• Low chemical resistance rating — not suitable for systems carrying aggressive solvents or chemicals
• Sold in a package quantity of 20 pieces

Compatibility

Designed for use in non-pressure ABS DWV piping systems with 3-inch pipe. Suitable for drain, waste, and vent applications in residential and light commercial construction where ABS hub-style fittings are specified.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Before beginning work, shut off any water supply and ensure the line is clear and dry. ABS fittings are joined using ABS solvent cement — no primer is required for ABS-to-ABS joints in most jurisdictions, but always verify local code requirements. This fitting is rated for non-pressure DWV use only and must not be installed in pressurized supply lines.
