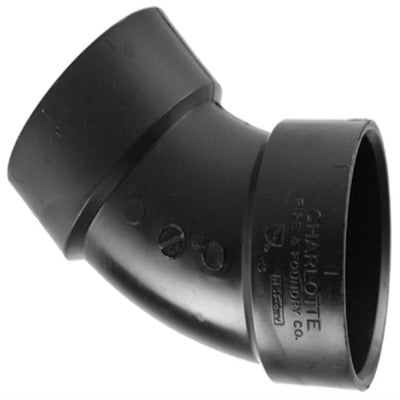

Charlotte Pipe Abs 00321 0600HA Abs Dwv 45 Degree Elbow

Product Description

The CHARLOTTE PIPE FOUNDRY CO. ABS 00321 0600HA is a 1-1/2 inch ABS DWV 45-degree hub x hub elbow designed for non-pressure drain, waste, and vent piping systems. This fitting changes flow direction by 45 degrees and connects using solvent-cement joints at both hub ends. Molded from black ABS material, it is suited for residential and light commercial DWV rough-in work. Plumbers install this fitting during new construction and remodel projects where a gradual directional change is needed in a horizontal or vertical drain run.

This elbow is used in non-pressure drain, waste, and vent installations. It is appropriate for residential bathroom, kitchen, and laundry drain lines as well as light commercial interior plumbing systems. The hub x hub configuration accepts standard 1-1/2 inch ABS pipe at both ends, allowing a clean 45-degree transition between pipe runs. It is sold in a package quantity of 100 units, making it practical for contractors stocking fittings for multiple rough-in installations.

Key Features

• 45-degree angle provides a gradual directional change in DWV piping layouts
• Hub x hub ends accept solvent-cement bonding on both sides
• Black ABS construction suitable for non-pressure drain, waste, and vent service
• 1-1/2 inch size fits common lavatory, kitchen sink, and standpipe drain applications
• Package quantity of 100 units per carton supports multi-unit or contractor-scale jobs

Compatibility

Designed as an OEM-style replacement and standard fitting for non-pressure ABS DWV piping systems using 1-1/2 inch pipe with hub connections.

Installation Notes

This fitting is installed by licensed plumbers and follows applicable plumbing codes, including the IPC and UPC, depending on jurisdiction. Shut off all flow to the drain line and verify the system is de-pressurized before cutting into existing pipe. Clean and dry both the pipe end and hub socket before applying ABS solvent cement, and allow adequate cure time per the cement manufacturer instructions before restoring flow. Do not use this fitting in pressurized water supply lines.
