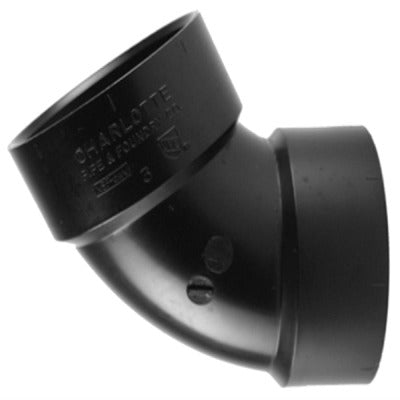

Charlotte Pipe Abs 00319 0800HA 2 Inch 60 Degree Hxh Elbow

Product Description

The Charlotte Pipe ABS 00319 0800HA is a 60-degree hub x hub elbow fitting for ABS drain, waste, and vent (DWV) piping systems. It redirects flow at a 60-degree angle within a waste line, making it suitable for non-pressure DWV applications where a gradual directional change is required. The fitting is molded from black ABS material and connects via hub-to-hub joints, which accept solvent-welded ABS pipe on both ends. Licensed plumbers install this type of fitting during rough-in work on residential and light commercial drain and vent systems. It is sold in a package quantity of 25 units.

This elbow is designed for use in non-pressure drain, waste, and vent installations. A 60-degree elbow provides a less abrupt change of direction than a standard 90-degree elbow, which can help maintain flow velocity in horizontal or angled drain runs. It is appropriate for residential plumbing rough-in, multi-unit residential construction, and light commercial DWV systems where ABS piping is the specified material. The black ABS construction is standard for above-ground and in-wall DWV applications in many jurisdictions.

Key Features

• 60-degree angle for gradual directional change in waste lines
• Hub x hub connection accepts solvent-welded ABS pipe on both ends
• 2-inch nominal pipe size for standard residential DWV branch lines
• Black ABS material rated for non-pressure drain, waste, and vent service
• Sold in a package quantity of 25 units for production or service use

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch ABS DWV piping systems in non-pressure drain, waste, and vent applications.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) or applicable local code. Shut off water supply and verify the line is depressurized and drained before cutting into an existing waste line. Clean and dry pipe ends before applying ABS solvent cement; follow the cement manufacturer's open and set time instructions. ABS DWV fittings are not rated for pressure service and must not be used in pressurized piping systems.
