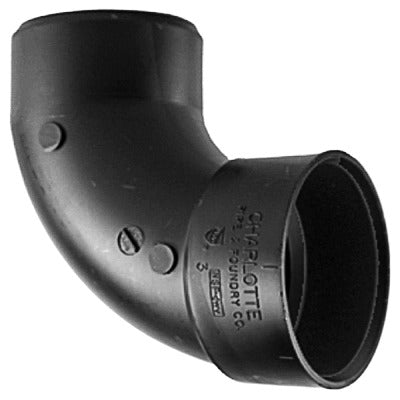

Charlotte Pipe Abs 00302 1000HA 3 in Abs Dwv 90 Deg Street Elbow

Product Description

The CHARLOTTE PIPE FOUNDRY CO. ABS 00302 1000HA is a 3-inch ABS DWV 90-degree street elbow with a spigot x hub configuration. This fitting is used to make a 90-degree directional change directly from another fitting in a drain, waste, and vent piping system. The spigot end inserts into an adjacent hub fitting, and the hub end accepts standard 3-inch ABS pipe or spigot. Constructed from black ABS material, this elbow is suited for non-pressure DWV applications. Licensed plumbers install this type of fitting during rough-in work on residential and light commercial drain systems.

This street elbow is designed for non-pressure drain, waste, and vent installations where a 90-degree turn is needed directly off an existing fitting without requiring an additional pipe stub. It is used in residential and light commercial plumbing systems where ABS DWV pipe is the specified material. The spigot x hub end configuration allows for compact, back-to-back fitting connections, reducing the overall footprint of the assembly in tight spaces such as wall cavities and floor framing.

Key Features

• 90-degree street configuration allows direct fitting-to-fitting connection without an intermediate pipe section
• Spigot x hub end configuration: spigot inserts into an upstream hub, hub accepts downstream pipe or spigot
• 3-inch diameter sized for standard ABS DWV drain and vent lines
• Black ABS construction rated for non-pressure DWV service
• Low chemical resistance rating — suitable for typical household drain waste streams
• Sold in a package quantity of 20 units

Compatibility

Designed as an OEM-style replacement and standard fitting for 3-inch ABS DWV non-pressure drain, waste, and vent piping systems.

Installation Notes

This fitting is installed by licensed plumbers in accordance with the International Plumbing Code and applicable local codes governing ABS DWV systems. Solvent cement rated for ABS plastic must be used to join the spigot and hub connections — do not use PVC cement alone on ABS fittings. Ensure pipe ends are cleanly cut, deburred, and dry before applying primer and cement. Do not use this fitting in pressurized water supply lines.
