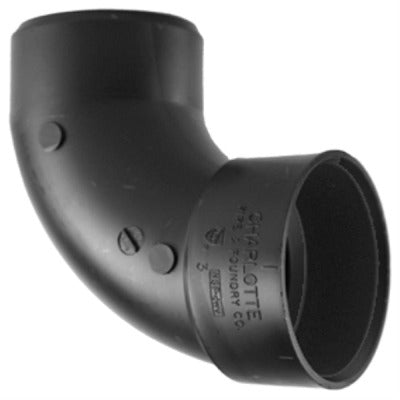

Charlotte Pipe Abs 00302 0800HA 2 in 90 Deg Abs Dwv Street Elbow

Product Description

The CHARLOTTE PIPE FOUNDRY CO. ABS 00302 0800HA is a 2-inch, 90-degree ABS DWV street elbow with a spigot-by-hub configuration. This fitting is used to make a 90-degree directional change within a drain, waste, and vent piping system. The spigot end inserts directly into the hub of an adjacent fitting, eliminating the need for an extra coupling. It is manufactured from black ABS material and is rated for non-pressure DWV applications only. Licensed plumbers and pipefitters install this type of fitting during rough-in work on residential and light commercial drain systems.

This fitting is suited for non-pressure drain, waste, and vent installations where a 90-degree turn is needed off an existing fitting. The spigot-by-hub end configuration makes it a true street elbow, allowing direct insertion into another fitting hub without an intermediate pipe section. It is appropriate for interior DWV rough-in applications in residential construction and light commercial plumbing. Note that this fitting carries a low chemical resistance rating and should not be used in systems exposed to aggressive solvents or chemicals incompatible with ABS.

Key Features

• 2-inch nominal size, 90-degree sweep for DWV directional changes
• Spigot x Hub end configuration — functions as a true street elbow
• Black ABS material construction for standard DWV service
• Rated for non-pressure drain, waste, and vent installations only
• Low chemical resistance — verify compatibility before use in chemically active environments
• Sold in a package quantity of 50 units

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch non-pressure ABS DWV piping systems in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and ensure the drain line is empty and dry before solvent-cementing ABS fittings. Use ABS-rated solvent cement and primer as specified by the fitting manufacturer and local code. Do not use this fitting in pressurized water supply lines or in systems carrying fluids incompatible with ABS material.
