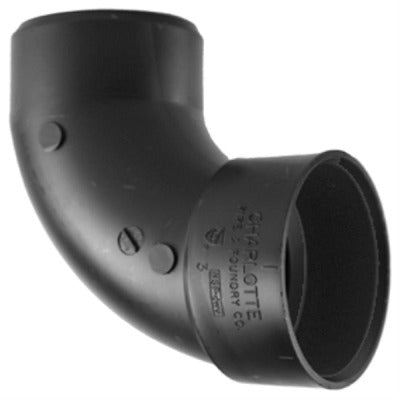

Charlotte Pipe Abs 00302 0600HA 1-1/2 in 90 Deg Street Elbow

Product Description

The Charlotte Pipe Foundry Co. ABS 00302 0600HA is a 1-1/2 inch ABS DWV 90-degree street elbow designed for non-pressure drain, waste, and vent piping systems. The spigot x hub end configuration allows it to connect directly into the hub of an adjacent fitting, making a clean 90-degree directional change without the need for an additional coupling. Molded from black ABS material, this fitting is lightweight and well-suited for residential and light commercial DWV rough-in work. A licensed plumber or pipefitter typically installs this fitting as part of a complete drain, waste, and vent assembly.

This street ell is intended for non-pressure DWV applications including sanitary drain lines, waste stacks, and vent piping. The spigot end inserts directly into a mating hub fitting, which reduces the number of fittings required at a direction change. It is sold in packages of 20 units, making it practical for contractors roughing in multiple fixtures or completing larger DWV installations in one order. It is not rated for pressure service or chemical drainage systems.

Key Features

• 90-degree street configuration with spigot x hub ends for direct fitting-to-fitting connections
• 1-1/2 inch nominal size for standard DWV branch and vent lines
• Black ABS material — lightweight, impact-resistant, and easy to solvent-cement
• Rated for non-pressure drain, waste, and vent service only
• Low chemical resistance — not suitable for chemical or industrial drainage
• Sold in a package quantity of 20 pieces

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and light commercial ABS DWV piping systems using 1-1/2 inch nominal pipe and fittings.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code or applicable local code. Before beginning work, confirm all upstream flow is stopped and the line is depressurized. Clean and dry all mating surfaces before applying ABS solvent cement, and allow adequate cure time per the cement manufacturer's instructions before restoring flow. Do not use this fitting in pressurized water supply lines or in systems conveying chemicals beyond standard household drain waste.
