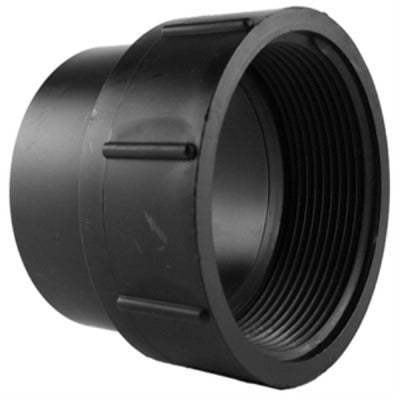

Charlotte Pipe Abs 00105 1000HA 3 in Cleanout Body Adapter

Product Description

The CHARLOTTE PIPE FOUNDRY CO. ABS 00105 1000HA is a 3-inch ABS DWV cleanout body adapter designed for non-pressure drain, waste, and vent piping systems. The spigot end solvent welds into a fitting hub, while the female iron pipe (FIP) threaded end accepts a male threaded cleanout plug. This conventional threaded cleanout fitting is manufactured from black ABS material and is suited for residential and light commercial DWV rough-in work. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This adapter is used in non-pressure drain, waste, and vent installations where accessible cleanout access points are required by code. The spigot-by-FIP configuration allows the body to be integrated directly into an ABS hub fitting while providing a threaded opening for a removable cleanout plug. Typical applications include in-wall, under-slab, or exposed DWV runs in residential and commercial construction where cleanout access is mandated by the applicable plumbing code.

Key Features

• 3-inch spigot end solvent welds into an ABS fitting hub for a secure, leak-free joint
• Female iron pipe threaded end accepts a standard male threaded cleanout plug
• Black ABS construction rated for non-pressure DWV service
• Low chemical resistance rating — suited for standard drain, waste, and vent applications
• Conventional cleanout body design compatible with standard installation practices
• Sold in a package quantity of 25 units

Compatibility

Designed as an OEM-style replacement and new-installation fitting for ABS DWV piping systems in non-pressure drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) or local plumbing code requirements. Shut off water supply and ensure the line is drained before cutting into an existing DWV run. The spigot end requires solvent cement rated for ABS pipe and fittings — do not use PVC-only cement on ABS. Cleanout plugs must be accessible per code and should not be permanently sealed.
