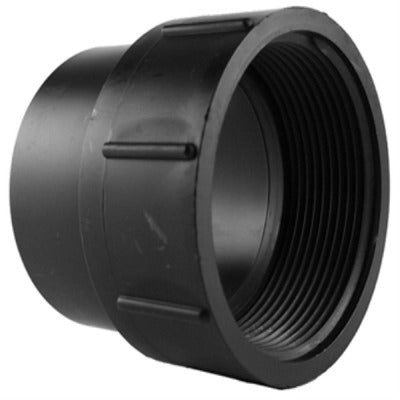

Charlotte Pipe Abs 00105 0600HA Cleanout Body Adapter 1-1/2 in

Product Description

The CHARLOTTE PIPE FOUNDRY CO. ABS 00105 0600HA is a 1-1/2 inch ABS DWV fitting cleanout body adapter designed for non-pressure drain, waste, and vent piping systems. The spigot end solvent welds into a fitting hub, while the female iron pipe (FIP) thread end accepts a male threaded cleanout plug. This conventional threaded cleanout fitting is manufactured from black ABS material and is intended for installation by licensed plumbers working on residential or light commercial DWV systems.

This adapter is used in non-pressure drain, waste, and vent installations where an accessible cleanout is required. It is suited for residential plumbing rough-in work and light commercial DWV applications. The spigot-by-FIP configuration makes it compatible with standard ABS hub fittings on the solvent-weld side and accepts a male threaded plug on the threaded side to complete the cleanout assembly. Note that ABS material carries low chemical resistance; verify suitability for the specific drainage environment before installation.

Key Features

• 1-1/2 inch spigot x female iron pipe (FIP) connection configuration
• Solvent-weld spigot end integrates directly into a standard ABS fitting hub
• FIP thread accepts a male threaded cleanout plug for access and service
• Black ABS construction rated for non-pressure DWV service
• Conventional threaded cleanout design for straightforward plug removal
• Packaged in quantities of 50 units per package for trade stocking

Compatibility

Designed as an OEM-style replacement and standard component for ABS DWV non-pressure drain, waste, and vent piping systems using 1-1/2 inch spigot connections.

Installation Notes

Installation is performed by a licensed plumber following applicable IPC or local plumbing code requirements. Power down any associated equipment and ensure the drain system is dry before solvent welding. Apply ABS solvent cement to the spigot end per the cement manufacturer's instructions and allow full cure time before pressurizing or flowing water. Do not use this fitting in pressurized supply lines or in drainage environments with chemicals incompatible with ABS material.
