Charlotte Pipe 835-007 Sch80 3/4 Pvc Fem Adp Sxfpt

Product Description

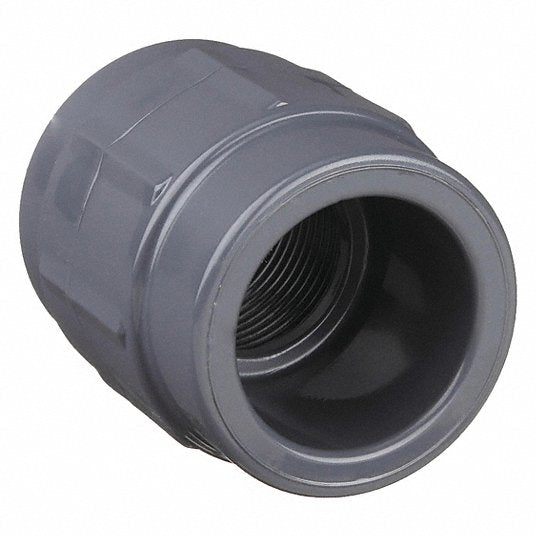

The CHARLOTTE PIPE 835-007 adapter fitting is a straight, female type with a 3/4 inch size A and 3/4 inch size B. Constructed from PVC material and featuring a Schedule 80, it is designed for pressure system applications. The end connection is socket x female threaded and it conforms to ASTM D1784/D2467/D2464/F1970 material specifications.

• Made in USA
• End Connection Socket x Female Threaded
• Temperature Rating 140 Deg F

Product Highlights

This PVC Schedule 80 adapter fitting is durable, easy to install, and suitable for pressure applications requiring a robust connection.

Product Information

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: 835-007
• Country of Origin: USA

Technical Specifications

• Applicable Standard: NSF 14/61
• Application: Pressure System
• Category: Plumbing & Bath / Kitchen Fixtures
• Description: Adapter Fitting; Type Straight, Female; Size A 3/4 Inch; Size B 3/4 Inch; Schedule 80; End Connection Socket x Female Threaded; Material PVC; Material Specification ASTM D1784/D2467/D2464/F1970; Process Injection Molded; Temperature Rating 140 Deg F; Application Pressure System; Applicable Standard NSF 14/61
• End Connection: Socket x Female Threaded
• Features/Benefits: Made in USA
• Manufacturer Name: Charlotte Pipe
• Manufacturer Part Number: 835-007
• Material: PVC
• Material Specification: ASTM D1784/D2467/D2464/F1970
• Process: Injection Molded
• Schedule: 80
• Size A: 3/4 Inch
• Size B: 3/4 Inch
• Temperature Rating: 140 Deg F
• Type: Straight, Female
• Fitting Type: Female Adapter
• Style: Female Adapter
• Profile: Standard
• Size: 3/4"
• Connection Type: Socket x FPT
• Connection Summary: 3/4" Socket x 3/4" FPT
• Maximum Temperature: 140 F (60 C)
• Fitting Shape: Straight
• Thread Type: NPT
• Side 1 Nominal Pipe Size: 3/4 in
• Side 1 Connection Gender: Female
• Side 1 Connection Type: Socket
• Side 2 Nominal Pipe Size: 3/4 in
• Side 2 Connection Gender: Female
• Side 2 Thread Type: NPT
• Side 2 Connection Type: Threaded
• Sealing Method: Cement
• Temperature Range: 140 F
• Maximum Operating Pressure: 345 psi
• For Media Type: Non-Potable Water; Potable Water
• End Type: Slip x FPT
• Max Temperature: 140 F
• Standards: ASTM D-1784, NSF for potable water services
• Size in Inches: 3/4 inch
