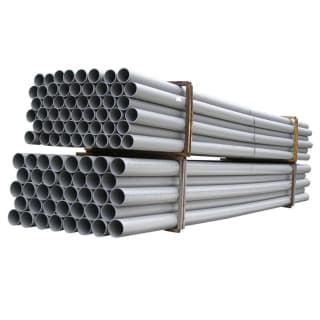

Charlotte Pipe 61194203980 Pvc SCH80 Plain End Pipe 4in 20ft

Product Description

The CHARLOTTE PIPE 61194203980 is a 4-inch Schedule 80 PVC plain end pipe supplied in 20-foot lengths. Schedule 80 PVC is distinguished by its thicker wall construction compared to Schedule 40, making it suitable for higher-pressure applications in industrial, commercial, and heavy-duty residential plumbing systems. The plain end configuration allows it to be cut to length and joined using solvent-cement socket fittings or threaded adapters. Licensed plumbers and pipefitters install this pipe in both above-ground and below-grade pressure piping systems where chemical resistance and pressure ratings are a priority.

This pipe is used in pressure piping, irrigation, industrial process lines, conduit applications, and chemical handling systems where PVC's corrosion resistance is required. The 4-inch nominal diameter and 20-foot length make it a standard stock item for commercial plumbing rough-ins, municipal infrastructure work, and industrial plant piping. Its plain end design gives installers flexibility in connection method and field fabrication.

Key Features

• Schedule 80 wall thickness provides higher pressure rating than Schedule 40 in the same nominal size
• Plain end configuration supports solvent-cement joining or threading with appropriate dies
• PVC material offers excellent resistance to corrosion, rust, and many chemicals
• Meets ASTM D 1785 standard for PVC plastic pipe and ASTM D 1784 for PVC compound
• 4-inch nominal diameter in a full 20-foot length minimizes field joints on long runs

Compatibility

Designed for use with Schedule 80 PVC socket fittings, threaded fittings, and compatible solvent-cement systems rated for Schedule 80 PVC pressure pipe per ASTM D 1785.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line completely before cutting into any existing system. Use a fine-tooth saw or PVC pipe cutter to achieve a clean, square cut, then deburr and chamfer the end before applying primer and solvent cement. Do not exceed the pressure and temperature ratings for Schedule 80 PVC listed by the manufacturer for the specific installation conditions.

Technical Specifications

• Material: PVC
• Schedule: SCH 80
• Nominal Size: 4 inches
• Length: 20 feet
• Connection Type: Plain End
• ASTM Standards: ASTM D 1784, ASTM D 1785

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: 61194203980
