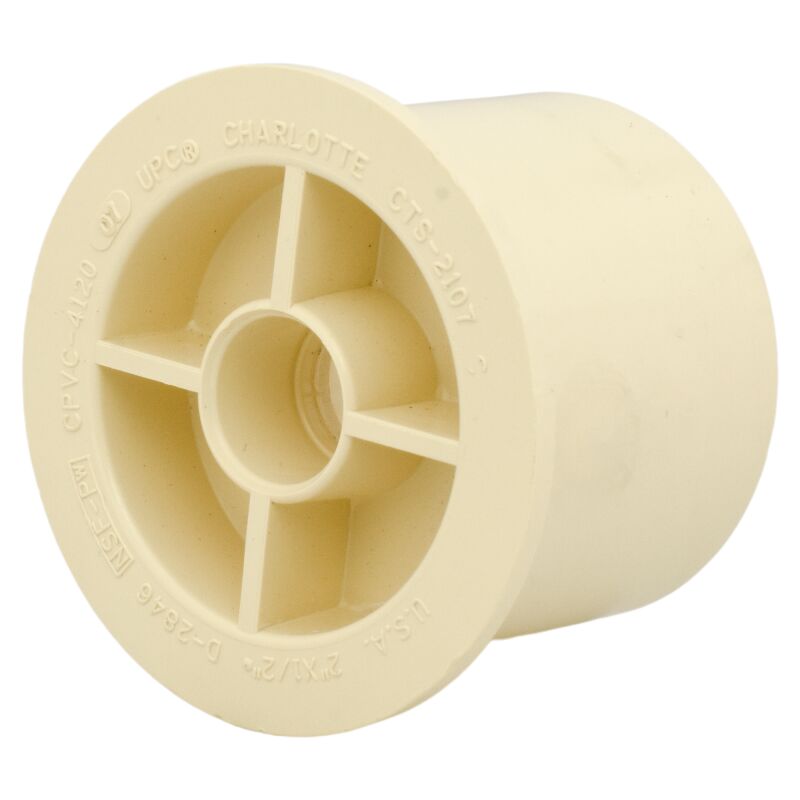

Charlotte Pipe 05186 CTS-2107 CPVC Bushing (2 inch x 1/2 inch)

Product Description

The Charlotte Pipe 05186 is a CTS-2107 CPVC reducing bushing that transitions from 2 inch to 1/2 inch using socket x spigot connections for CTS piping systems. It is molded from FlowGuard Gold CPVC and conforms to ASTM D1784/D2846. The fitting is SDR 11, rated to 100 PSI and 180 Deg F, measures 1-13/16 inch overall, and is intended for hot and cold potable water distribution.

• Material: CPVC (FlowGuard Gold); meets ASTM D1784 / D2846 and CTS dimensional standard
• Size and connections: reduces 2 inch to 1/2 inch; end connection socket x spigot; overall length 1-13/16 inch
• Ratings and applications: SDR 11 schedule, pressure rating 100 PSI, temperature rating 180 Deg F; suitable for hot/cold and drinking water systems

Product Highlights

Reducing CPVC bushing for CTS systems; complies with NSF 14/61 and FHA UM-61A; Series CTS-2107.

Product Information

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: 05186
• Country of Origin: USA

Technical Specifications

• Brand: Charlotte Pipe
• Manufacturer Part Number: 05186
• Model/Series: CTS-2107
• Product Type: Bushing Fitting (Reducing)
• Size: 2 inch x 1/2 inch
• CTS Standard: CTS (Copper Tube Size)
• Schedule: SDR 11
• End Connection: Socket x Spigot
• Material: CPVC (FlowGuard Gold)
• Material Specification: ASTM D1784 / D2846
• Pressure Rating: 100 PSI
• Temperature Rating: 180 Deg F
• Applications: Hot and cold water distribution; Drinking water systems
• Applicable Standards: NSF 14/61; FHA UM-61A
• Overall Length: 1-13/16 inch
• UPC: 611942051861
• SKU: 38336
• UNSPSC: 40172309
• Product Group: Pipe, Valves & Fittings
• Manufacturer: Charlotte
