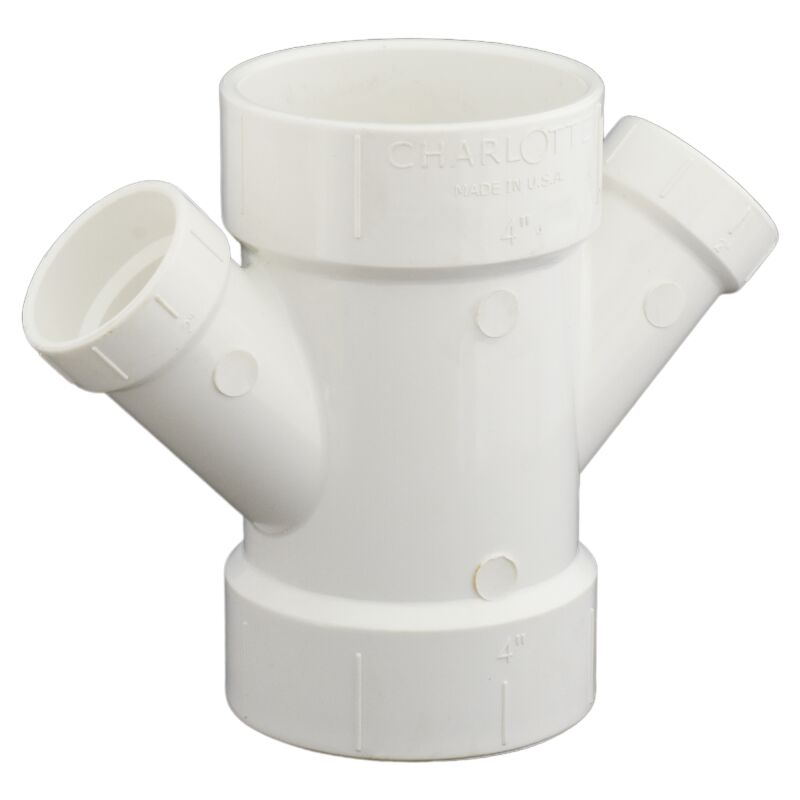

Charlotte Pipe 03646 612 Double Wye 4 x 4 x 2 x 2 (45 Degree)

Product Description

Charlotte Pipe 03646 is a 612 series PVC DWV double reducing wye used in drain, waste, and vent systems. The fitting has nominal sizes of 4 in x 4 in x 2 in x 2 in with a 45 degree branch angle, Schedule 40 construction, 0.25 inch wall thickness, and hub x hub x hub x hub connections. It is injection molded, rated to 140 °F, meets ASTM and NSF standards, and requires primer and solvent cement for installation.

• Nominal size: 4 in x 4 in x 2 in x 2 in with 45 degree branch angle
• Schedule 40 injection molded PVC, 0.25 inch wall thickness, hub x hub x hub x hub connections
• Meets ASTM D1784/D1785/D2665/D3311/F1866 and NSF 14/61; temperature rating 140 °F; for non-pressure DWV applications

Product Highlights

Double reducing 45 degree wye for PVC DWV systems, nominal 4 x 4 x 2 x 2 size, hub connections, meets ASTM and NSF standards

Product Information

Standard Information

• Brand: CHARLOTTE PIPE
• Manufacturer Part Number: 03646
• Country of Origin: United States

Technical Specifications

• Brand: Charlotte Pipe
• Manufacturer Part Number: 03646
• Series/Model: 612
• Product Type: Wye fitting
• Type: Double reducing
• Nominal Size: 4 in x 4 in x 2 in x 2 in
• Branch Angle: 45 degree
• Schedule: 40
• Wall Thickness: 0.25 inch
• End Connection: Hub x Hub x Hub x Hub
• Material: PVC
• Material Specification: ASTM D1784 / D1785 / D2665 / D3311 / F1866
• Manufacturing Process: Injection molded
• Temperature Rating: 140 °F
• Application: Non-pressure DWV drainage and venting of sewage and certain other liquid waste
• Installation Requirements: Primer and solvent cement
• Applicable Standards: FHA UM 79A; Federal Specification L-P-320A; NSF 14/61
• UPC: 611942036462
• UNSPSC: 40175208
• Package Quantity: 5 per carton
• Country of Origin: Made in USA
