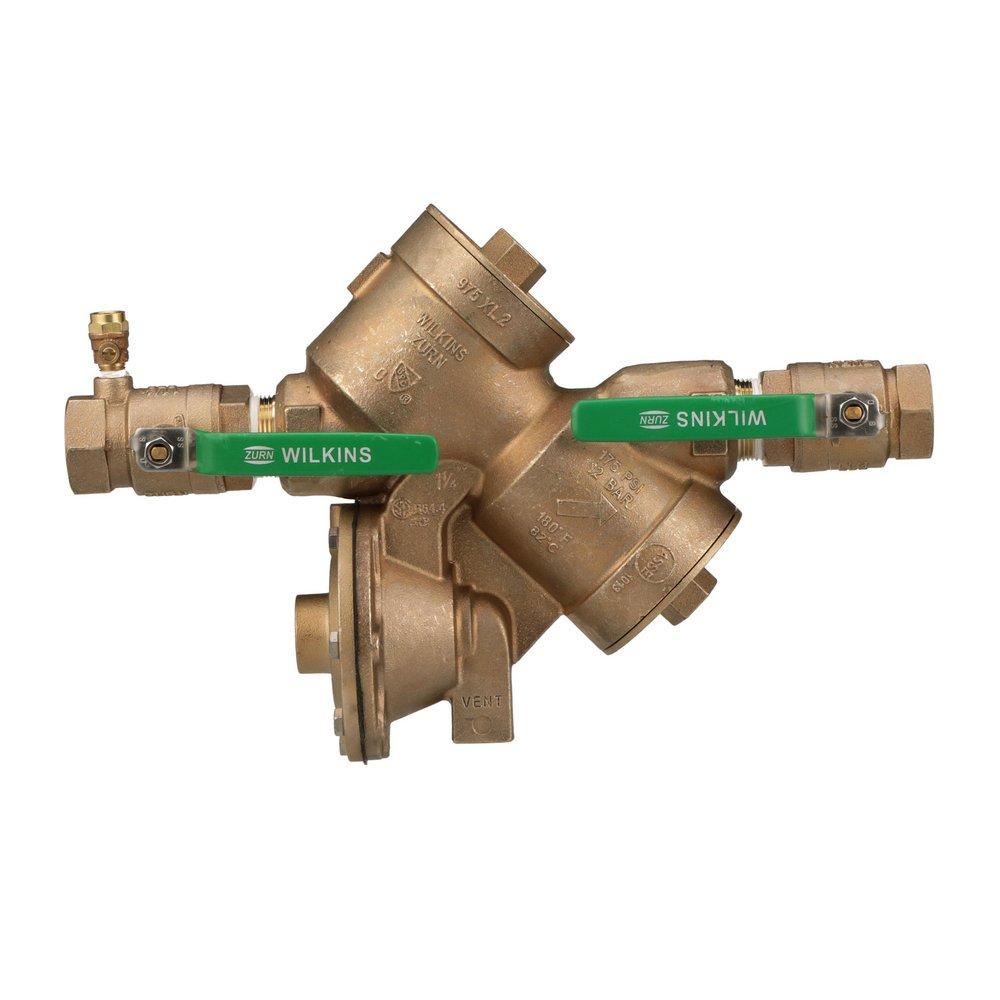

Zurn Wilkins 114-975XL2 Cast Bronze FNPT Backflow Preventer 1-1/4 Inch

Product Description

Zurn Wilkins model 114-975XL2 is a cast bronze FNPT backflow preventer designed for potable water lines to protect against both backsiphonage and backpressure of contaminated water into the potable water supply.

• Easy inline serviceability with separate access to each check valve and the relief valve.
• Pre-assembled with backflow, pressure regulation, and strainer components for simplified repairs.
• Compliant with low-lead laws and numerous industry standards including ASSE and IAPMO listings.

Product Highlights

The Zurn Wilkins 114-975XL2 offers high-hazard protection, thanks to its robust wye-pattern bronze body and design that enables labor cost savings due to short lay length.

Product Information

Standard Information

• Material: Cast Bronze, ASTM B584
• Connection Type: FNPT
• Pressure Rating: 175 psi WWP
• Temperature Rating: up to 180 degrees Fahrenheit

Technical Specifications

• Compliance: ASSE 1013, CSA B64.4, AWWA C511, ANSI/NSF 61
• Dimensions: 17 inches L x 4-1/4 inches W x 11-3/4 inches H
• Standards/Certifications: UL, IAPMO, FDA approved materials
